Imported No Order No. FG-5H-1M Brand BOOXT

Model FG-5H-1M Item No. FG-5H-1M Classification Disc type pneumatic grinder

Place of Origin Taiwan, China Chuck size 12.7 (mm) Grinding wheel size 125 (mm)

Air consumption 1.0 cubic meter/minute No-load speed 7600 (rpm) Air inlet size 3/8 (inch)

Suggested inner diameter of trachea 13 (mm) Working pressure 0.65 (Mpa) Purpose (applicable industry) Metal casting factory

Tool length 506 (mm) Applicable scope Grinding and polishing External dimensions 506mm

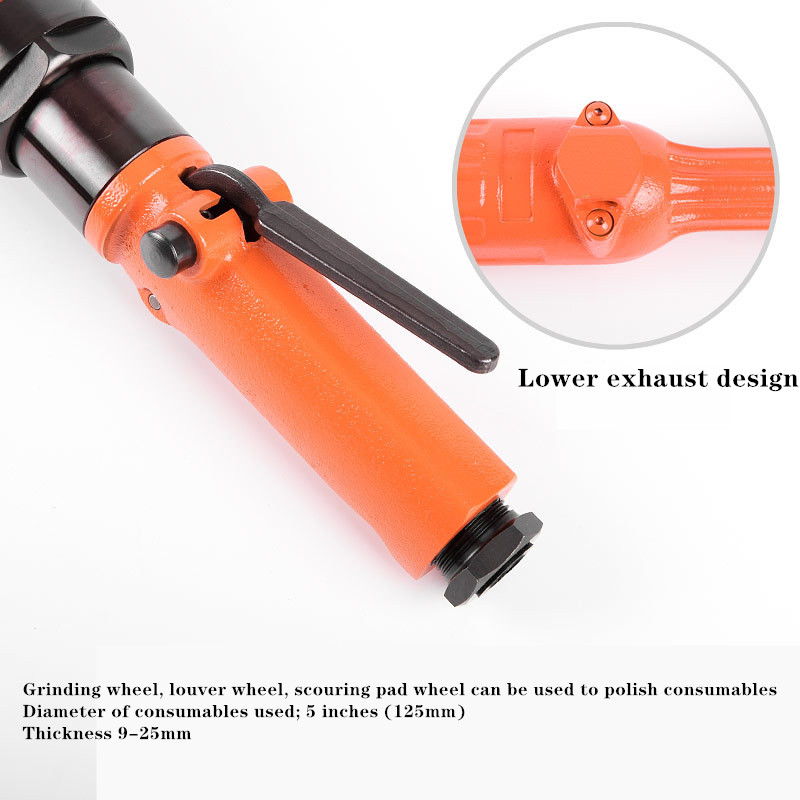

Disc diameter 5 inches (125mm) average air consumption 1.0 cubic meters/min. Suitable for polishing wheels. Polishing wheels with inner hole 12.7mm and thickness 9-25mm

Eccentricity 0% Net weight of tool 2.5 (kg) Is it a source of exclusive supply for cross-border export?

Series Disc pneumatic grinder
