Price | Member display |

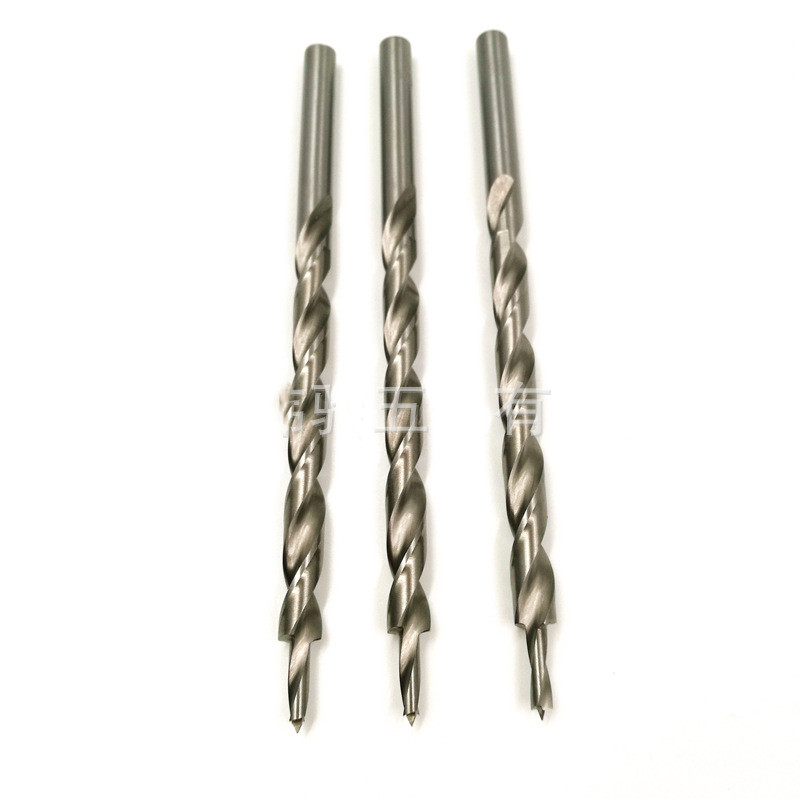

Name: JBWTL Jingbawang three-point woodworking inclined hole locator special drill
Material: high speed steel

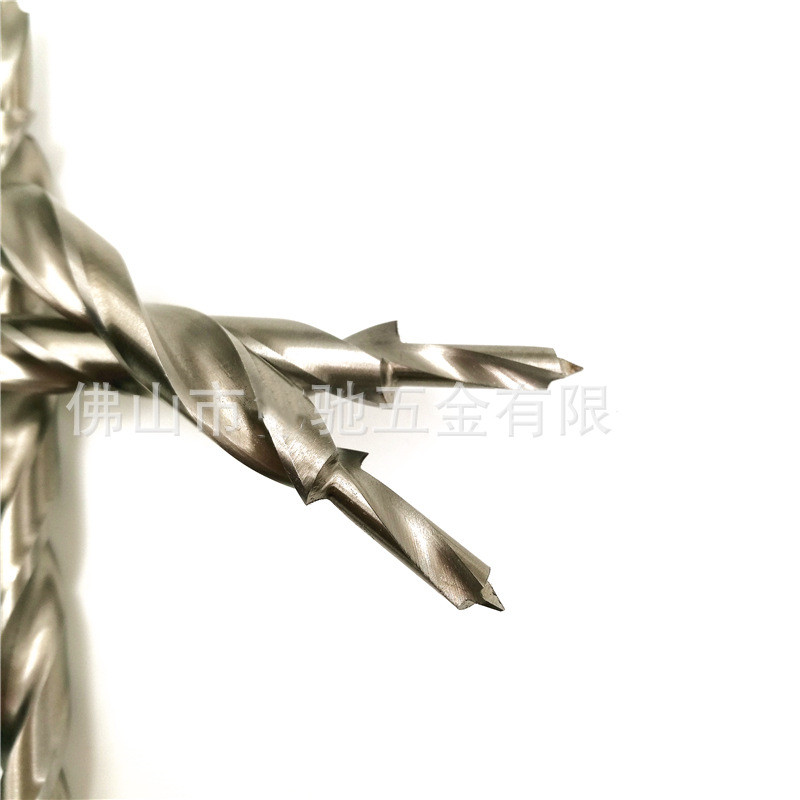

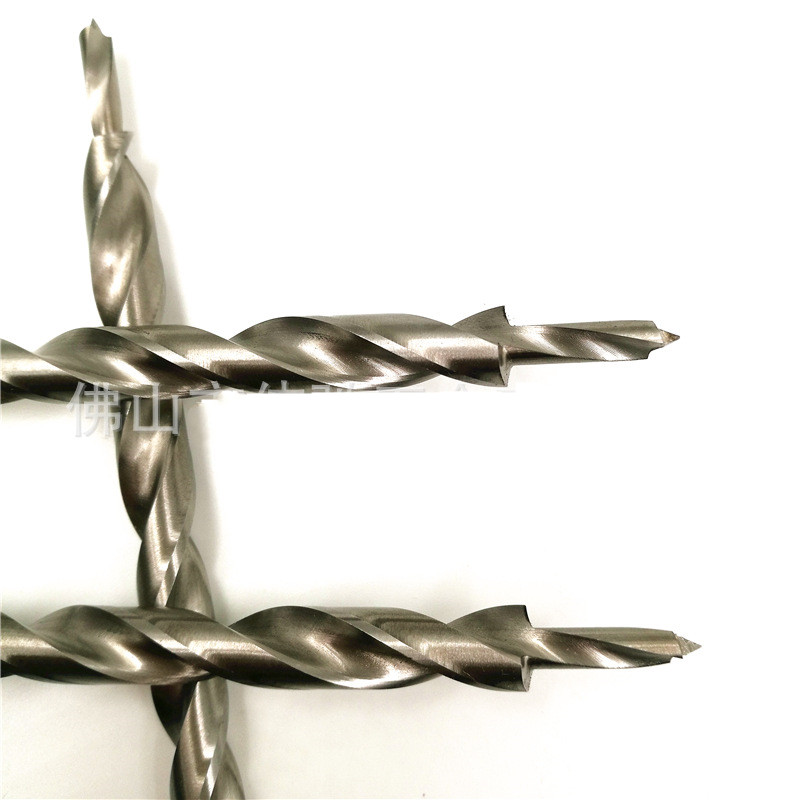

Process: Fully ground, the tip of the drill has a three-point shape, and the positioning is accurate;
Diagonal hole drill bit specifications: small drill bit 4.3mm* large drill bit 9mm* total length about 178m;

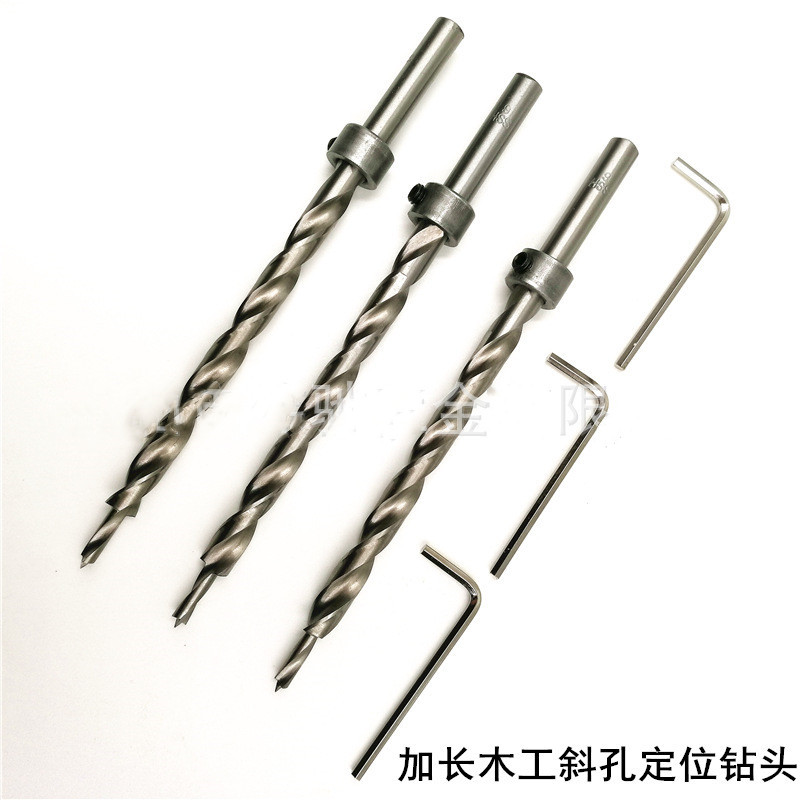

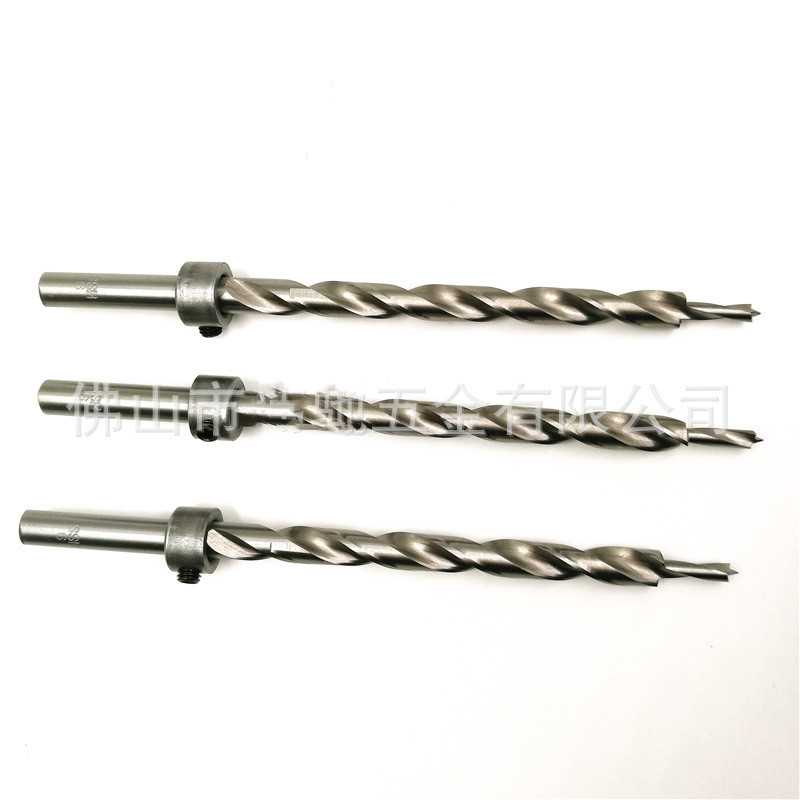

Product configuration: 1 inclined hole drill, 1 positioning ring, 1 small wrench;
Product function: It can be used with the oblique hole locator to punch holes on the board obliquely;
Usage (need to cooperate with oblique hole locator).
The correct operation method is as follows:
First: adjust the height of the drill bit,
Second: Clamp the board to be hit,
Third: Put the drill bit into the hole and touch the board,
Fourth: Raise the drill bit by 5 mm (remember not to drive the electric drill against the wood),
Fifth: Start the electric drill to reach a certain speed of 500 rpm or more, preferably 1500 rpm
Sixth: Advanced feed slower, wait for the front fine drill bit to enter half or fully, then the feed can be accelerated.
