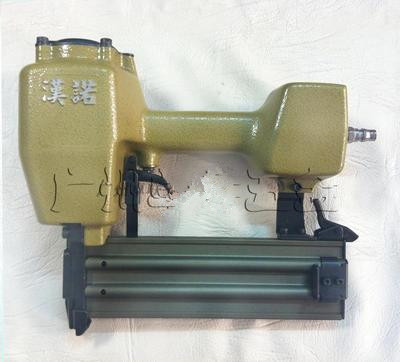

Product model: ST64-A ST64-C

Instructions for use

This product can only use the compressed air provided by the air compressor, the pressure range is 0.4-0.7kg/cm2

Please configure the water separator to ensure that the compressed air is clean and dry.

The length of the air duct should not exceed 5 meters

When loading the nail, remove the 怏怏 joint, open the movable nail clip, select the standard row of nails into the nail clip, close the nail clip

Turn on the air supply and verify that the air pressure is within the normal range.

When nailing, the nozzle is aligned and close to the work, the trigger is pulled, and the nail is hit. Loosen the handle of the trigger to reset the striker. After moving the nail gun to the proper position, the next shot can be fired.

Please choose standard high quality nails to avoid damage to your tools caused by staples.

When the nail gun is not working properly, please send it to a dealer or special maintenance point for professional maintenance. Non-professionals should not disassemble it.
