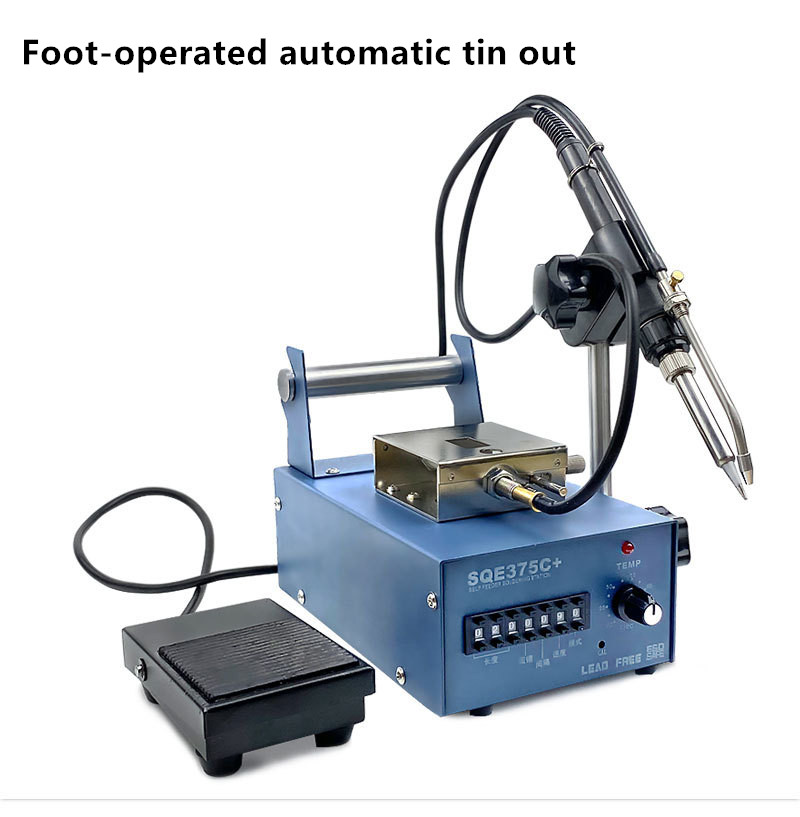

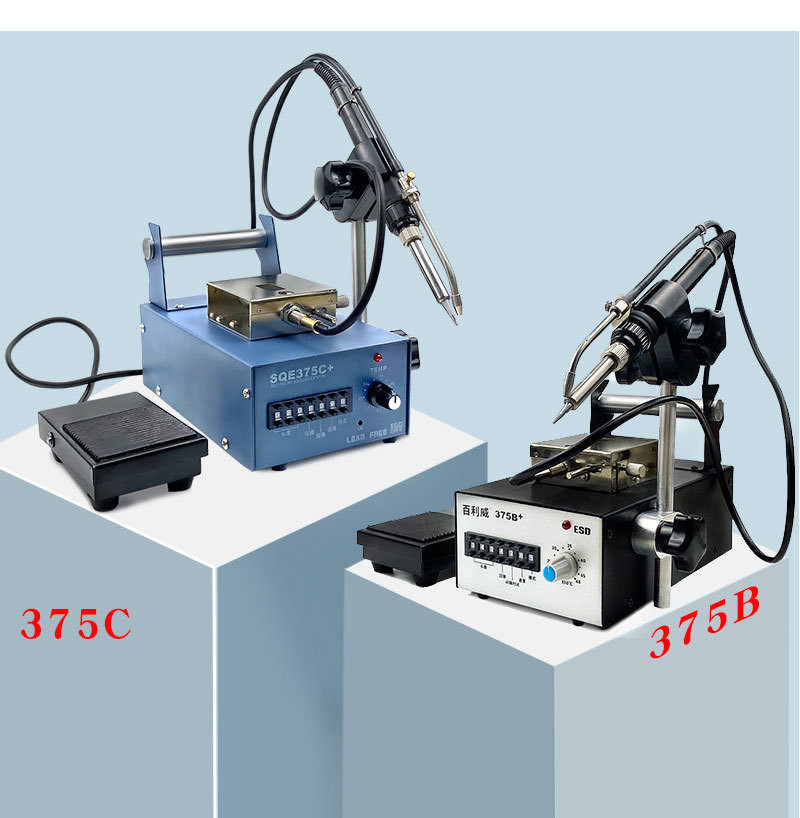

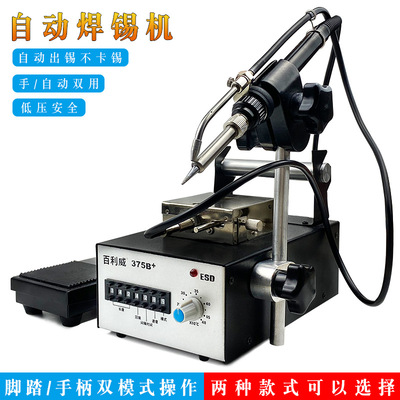

Model Bailiwei 375B+ (pedal type), SQE375C+ (manual type), foot switch Item No. 01

Material plastic handle electric soldering iron Phase number / input voltage 200-480 (V)

Power 60 (W) Voltage adjustment range 24 (V) Current AC

Temperature range 200-480 (℃) Welding tip and grounding impedance 2 (Ω) Welding tip and grounding voltage 2 (mV)

Standard soldering iron tip B Soldering iron tip temperature 200-480 (℃) Drive type Foot pedal

Power form Pedal type Protection level / Dimensions 117*112*60mm

Purpose Solder Net weight 2.4 (kg) Shell protection level /

Specification / Series Foot soldering machine
