Order number 00681 Item No. 00681

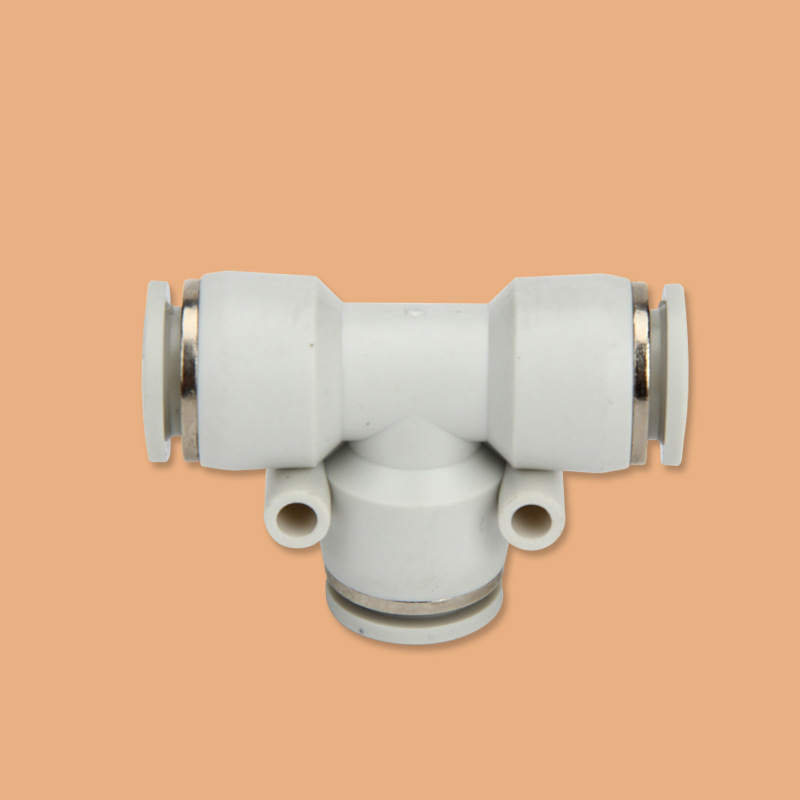

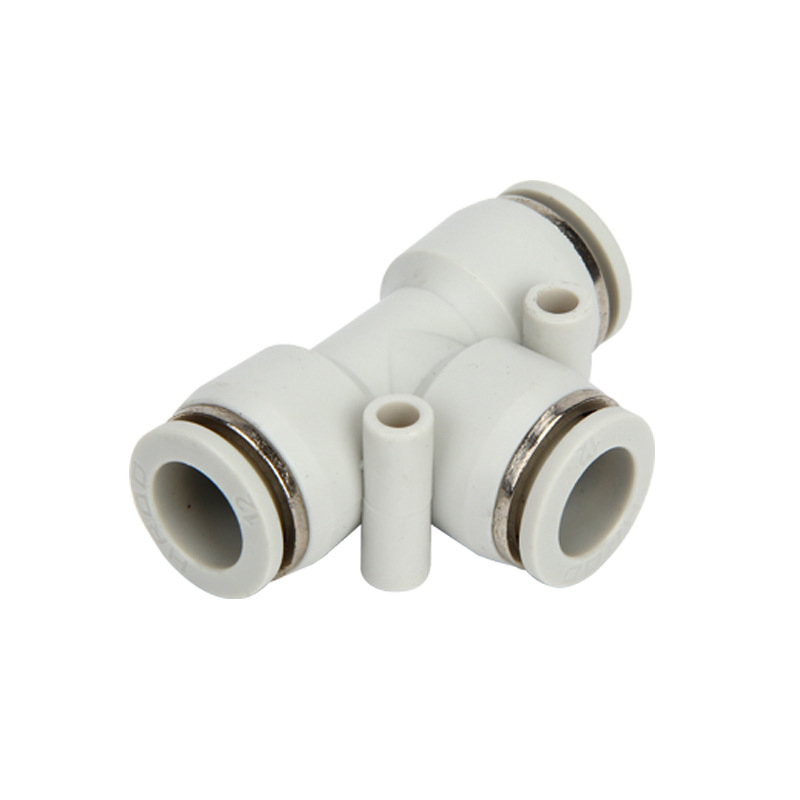

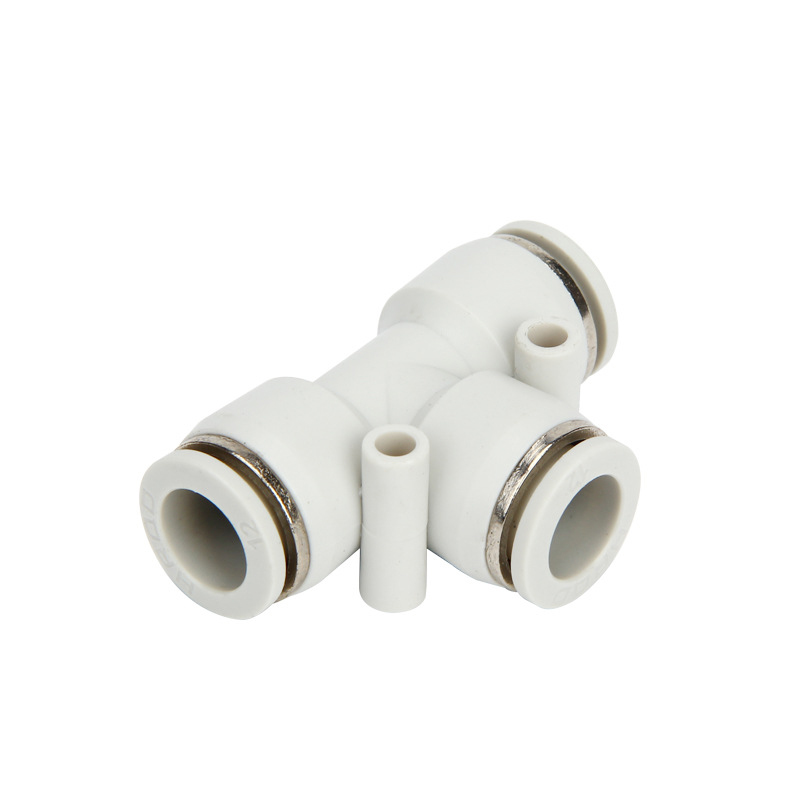

Model T-type three-way PE type Quick connector

Material Plastic Scope Automated equipment Temperature resistance 40 (°C)

Withstand voltage 1 (MPa) Installation form Connect 4 centimeters, connect 6 centimeters, connect 8 centimeters, connect 10 centimeters, connect 12 centimeters, connect 16 centimeters

The pneumatic quick connector is a quick connector that is mainly used for air piping and pneumatic tools. It can connect the pipe to or from the pipe without tools.

Pneumatic joint shape: The shape of the pneumatic joint usually has straight through, right angle, three-way, four-way, five-way, through-plate, throttling and other categories, which can be used for pipe connection under different conditions.

Connector features:

1, fast installation, simple and smart, save space;

2, various types, to meet the needs of any pneumatic pipe;

3. Even after installation, the plastic pipe body can be arbitrarily turned;

4. The release ring adopts an elliptical design, which makes the disassembly more labor-saving and convenient;

5, all taper pipe thread pre-coated PTFE leak-proof glue, good sealing performance.

Note on the use of connectors:

1. It is necessary to confirm that the cut surface of the pipe is vertical, there is no scratch on the outer circumference of the pipe and the pipe is not oval.

2. When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.

4. Please do not use it for purposes other than fluids.

5, do not exceed the maximum use pressure when using.

6. Do not use outside the temperature range to prevent deformation of the sealing material, which may lead to leakage.

7, do not artificially hit, bend, stretch, to prevent damage.

8. Do not use it in places such as metal powder or sand dust. If it is attached, it will cause poor work or leakage.

Precautions when disassembling: Use a suitable tool and use the outer hexagon of the fitting to remove the fitting. It is necessary to remove the sealing material that adheres to the opposite side of the pipe joint. Otherwise the adhered sealing material may enter the peripheral components, causing malfunction.
