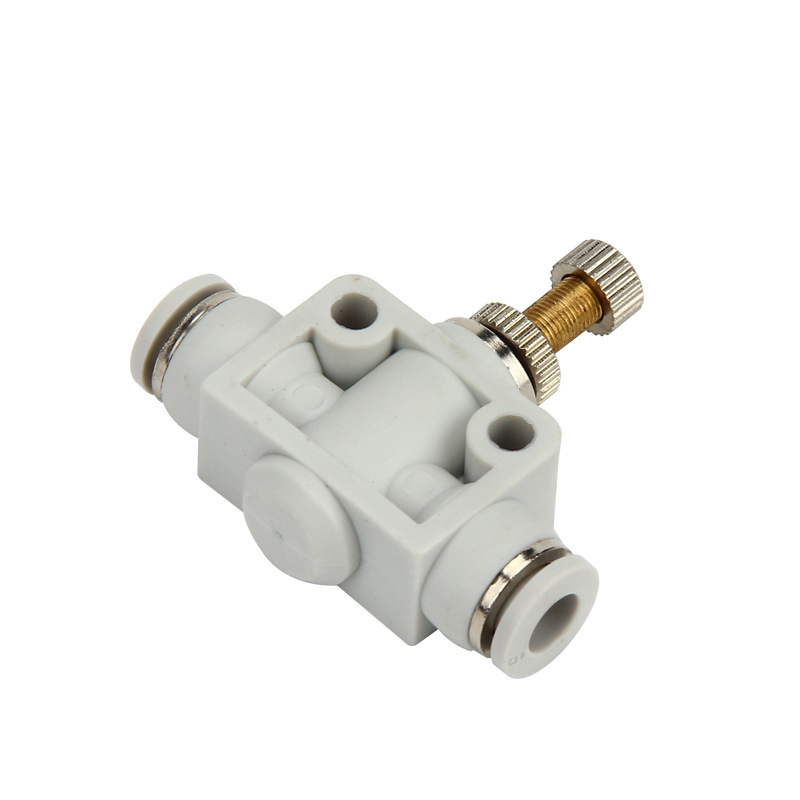

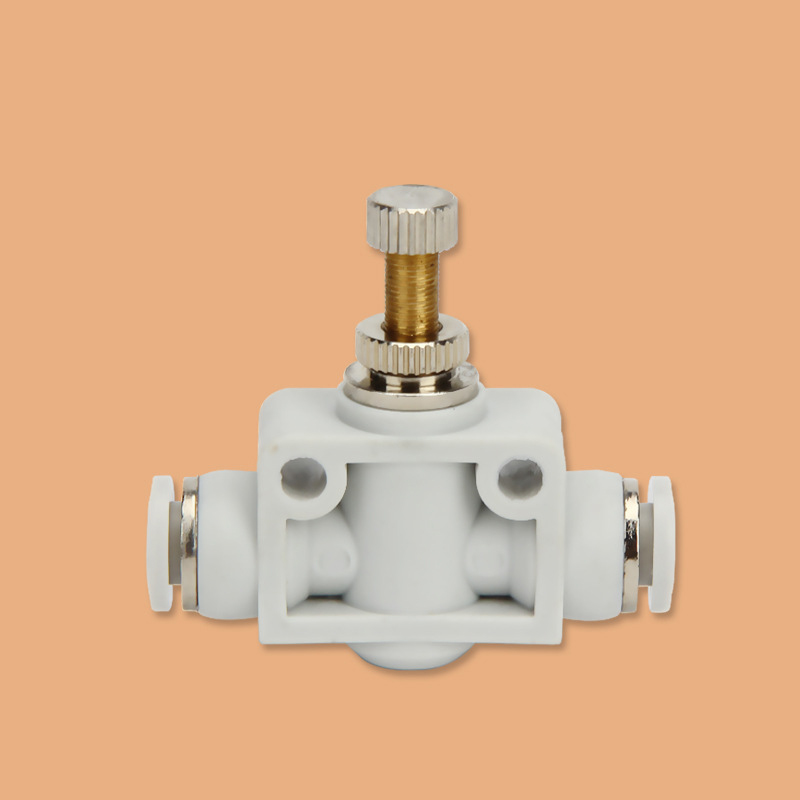

Huachi pneumatic components throttle joint pipe type high quality straight through white throttle PA throttle valve

PriceMember display
Quantity
- +

Description

Order number 00696 Article Number 00696

Model HPA Type Quick Connector

Material Copper, plastic Scope PU tube Temperature resistance 0-70 (°C)

Pressure resistance 0-1 (MPa) Installation form Plug and play The diameter of the nozzle is 4 centimeters, 6 centimeters, 8 centimeters, 10 centimeters, 12 centimeters (mm)











Use fluid: clean compressed air, vacuum


Maximum use pressure: 1.32MPA


Pressure range: 0-90MPA


Environment and fluid temperature: 0-60 degrees Celsius


Use hose: PU hose, nylon tube


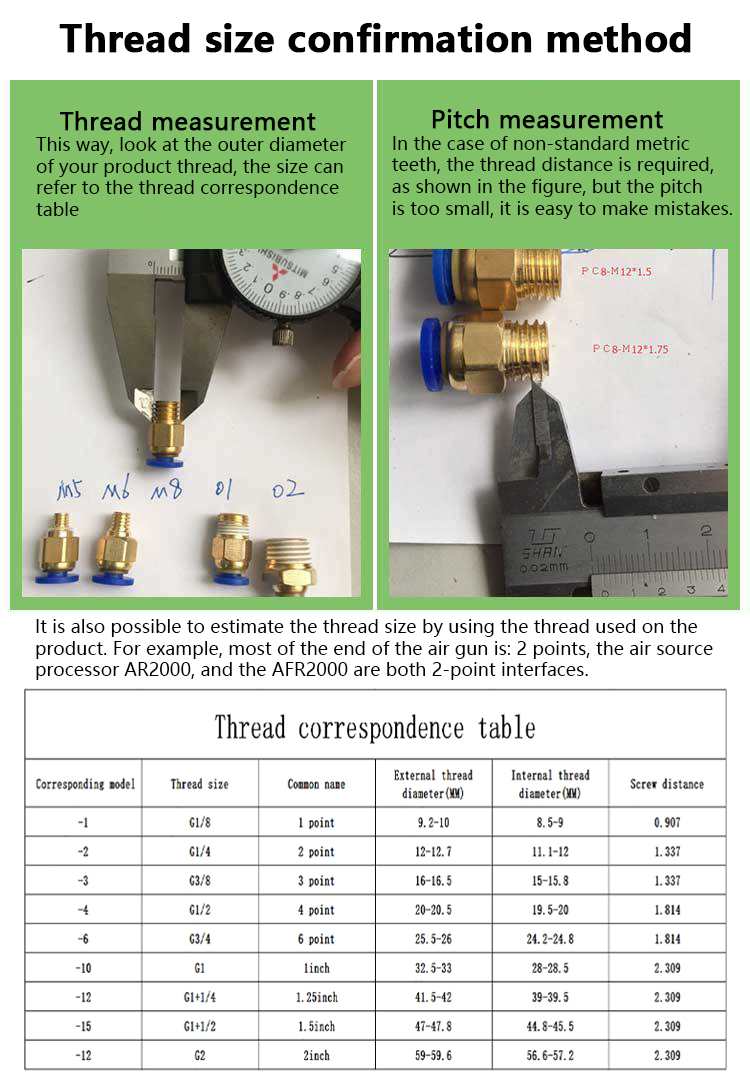

Ordering reference:


LPC 8 - 02


Serial number tracheal outer diameter thread form


LPL 4 01:1/8


LPB 6 02:1/4


LPD LPX LPCF 8 03:3/8


LPM 10 04:1/2


LPU 12


LPE 14


LPV 16


LPY


LPXL


LPK


LPG


LPEN


LPEND


LPY LPWG


note:


Do not use in fluids other than air or water (which can be used in mechanical and custom production)


If it is used in a place where it is produced as a flower, it may cause a fire, so it is forbidden to use it in such a place.


If it is used in hot water above 60 degrees Celsius, the resin may be damaged due to heat and hydrolysis, so it is forbidden to use in this case.


Our products cannot be used in places with static electricity


Do not use the external load (bending, twisting, pulling) on ​​the pipe joint, otherwise it may cause damage or leakage.


If you use a non-company's trachea product, it may cause leakage or abnormal connection and disassembly due to the tolerance of the trachea, so be sure to check whether the outer diameter meets the dimensions of the following table.


Specifications PU tube Nylon tube

4MMM +-0.1 +-0.08

6MM +-0.12 +-0.1

8MM +-0.12 +-0.1

10MM +-0.15 +-0.12

12MM +-0.15 +-0.12

16MM +-0.15 +-0.16


Check to see if the end face of the trachea is cut at right angles. Is there any damage or scratches outside the trachea? When connecting the trachea, please refer to the following. The product of the company will feel 2 pieces when inserting the trachea into the pipe joint. The segment is the locking part, the second segment is the sealing ring part, which must be inserted into the second paragraph


The tracheal connecting and dismounting buttons are designed to be easily connected and disassembled in an elliptical shape. For example, the elliptical button is limited by the space used, and a circular button can be specified when ordering. After connecting the pipe joint and the air pipe, the air pipe check must be taken to confirm whether the air pipe can be pulled or not, and it can be put into use without pulling.
