Order number 00688 Item No. 00688

Model Straight Diameter PG Type Quick Connector

Material Plastic Temperature resistance 40 (°C) Withstand voltage 1 (MPa)

Installation form 4-6,6-8,4-8,8-10,6-10,8-12,10-12,12-16

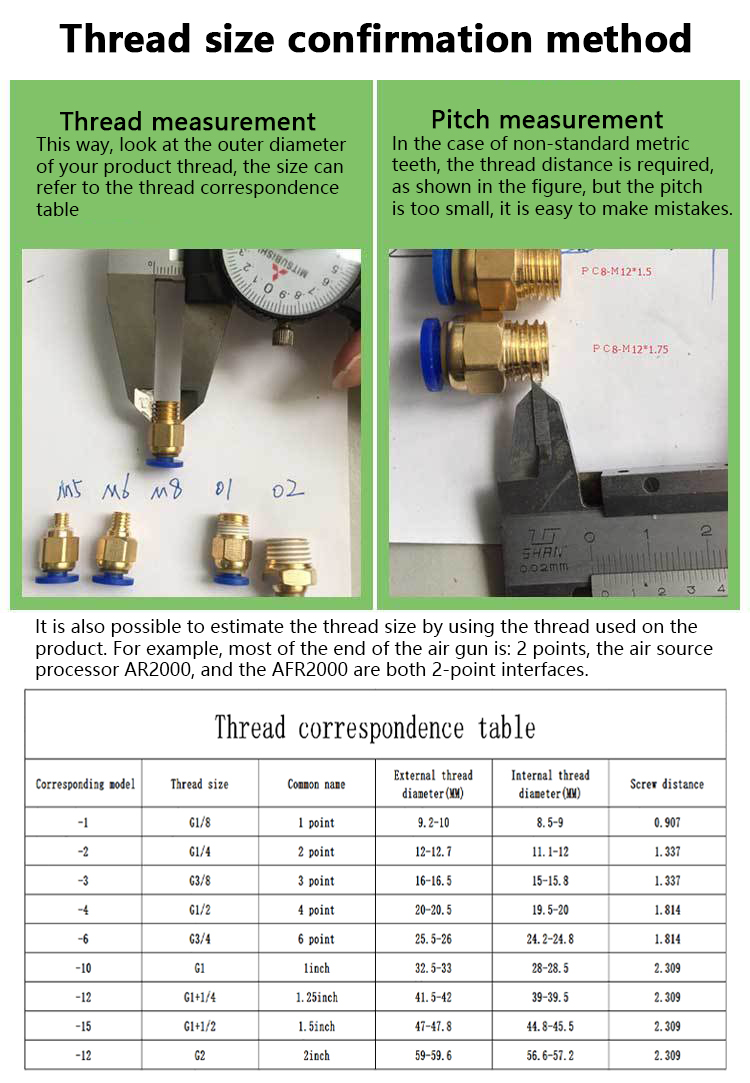

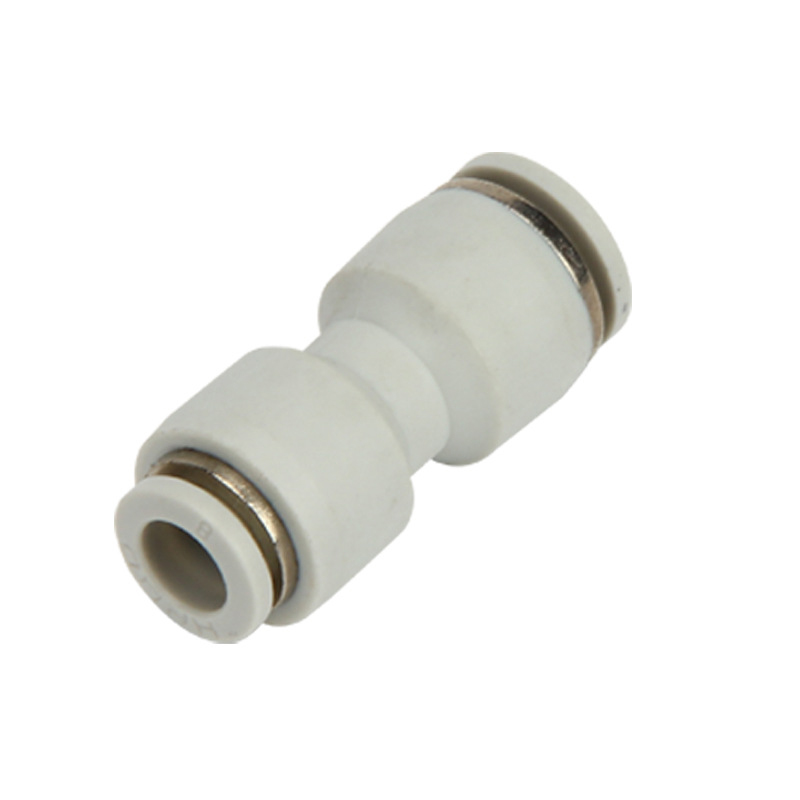

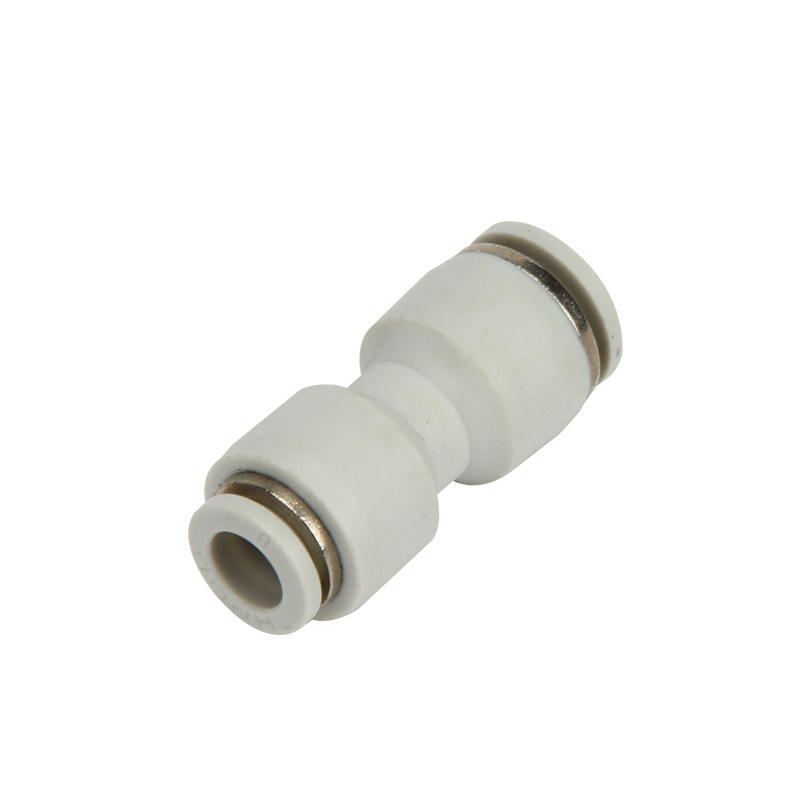

PG reducer straight through plug connector features:

 · Quick-fit pneumatic pipe joints are simple and versatile, and they are available in a variety of styles to meet the needs of any pneumatic pipe system.

· Even after installation, the direction of the plastic pipe can be freely changed to any direction.

·Blue, black and white multi-color plastic connectors for customers to choose

·Flameable and clean plastic joints can be customized according to customer requirements.

PG variable diameter straight-through plug connector environment:

Using fluid

Air or vacuum

use pressure

0~1.0Mpa

Carrying negative pressure

-100Kpa (10 Torr)

Withstand voltage

1.5Mpa

Applicable temperature range

5~60OC

Applicable hose

Nylon and PU

Note on the use of connectors:

1. It is necessary to confirm that the cut surface of the pipe is vertical, there is no scratch on the outer circumference of the pipe and the pipe is not oval.

2. When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.

4. Please do not use it for purposes other than fluids.

5, do not exceed the maximum use pressure when using.

6. Do not use outside the temperature range to prevent deformation of the sealing material, which may lead to leakage.

7, do not artificially hit, bend, stretch, to prevent damage.

8. Do not use it in places such as metal powder or sand dust. If it is attached, it will cause poor work or leakage.

Precautions when disassembling: Use a suitable tool and use the outer hexagon of the fitting to remove the fitting. It is necessary to remove the sealing material that adheres to the opposite side of the pipe joint. Otherwise the adhered sealing material may enter the peripheral components, causing malfunction.
