Order number 00742 Item No. 00742

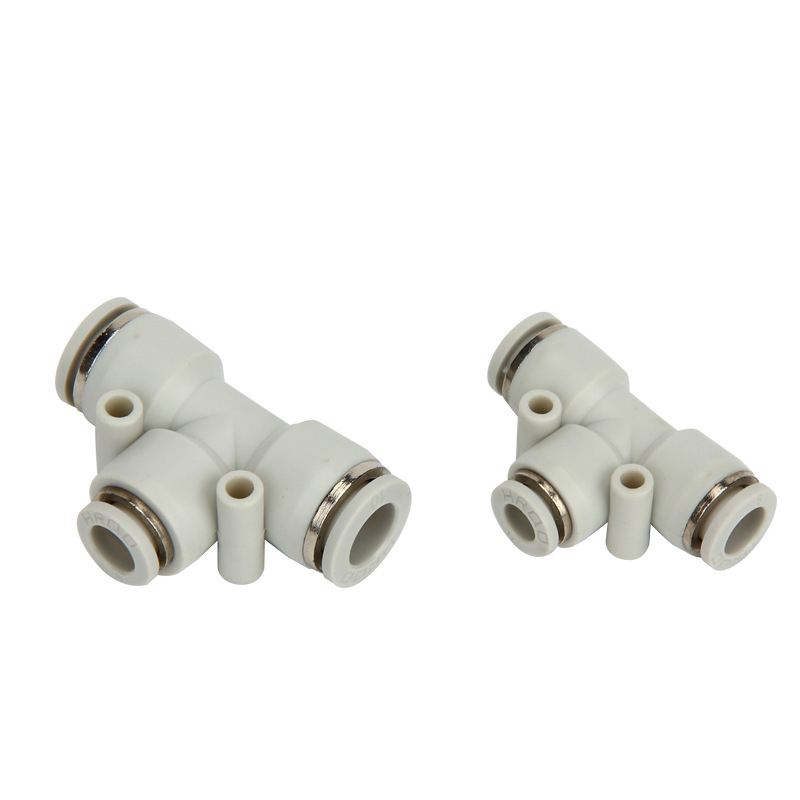

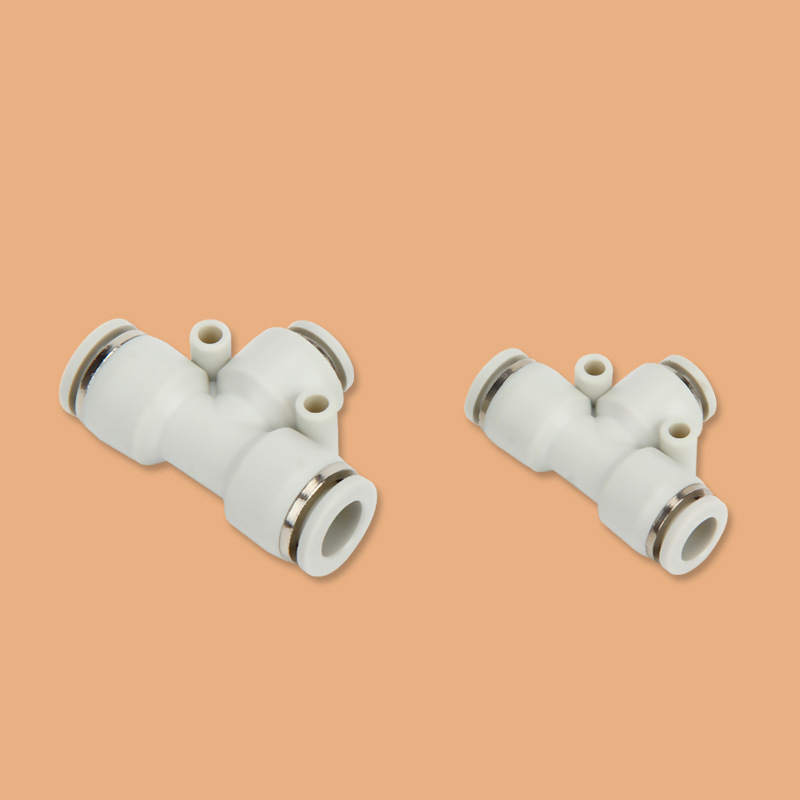

Model PEN Type Quick Connector

Material Plastic Scope PU tube Temperature resistance 0-70 (°C)

Withstand voltage 0-1(MPa) Mounting form Plug and play Connector diameter White 6-4-6, white 16-12-16, white 12-10-12, white 8-6-8, white 8-4-8 , white 10-8-10, white 10-6-10, white 12-8-12 (mm)

Product Features:

1. Simple and dexterous, with various forms to meet any needs.

2. Even after installation, the plastic pipe body can be arbitrarily turned.

3. The release ring adopts an elliptical design, which makes the disassembly more labor-saving and convenient.

4. All pipe threads are pre-coated with PTFE leak-proof glue for good sealing performance.

Takeover considerations

a. To confirm that the tracheal cross section is vertical, there is no scar on the outer circumference of the trachea.

b. To confirm that the trachea is inserted, be sure to insert it into the bottom of the connector. If it is not inserted into the bottom, it may cause air leakage.

c. After the trachea is inserted, pull it down and try to confirm that the trachea can not be pulled out.

Precautions when installing the connector body:

a. Use a suitable tool to mount the joint body with the outer hexagon of the pipe joint

b. When tightening the joint thread, it should be noted that the installation force should not be too large or too small. Excessively large may cause the thread to partially break and the seal to deform, resulting in leakage. Too small may cause loosening of the threaded portion.

C. After the joint is connected, the product with the same direction of contact can be adjusted within the tightening range.
