Order number 06511 Item No. 06511

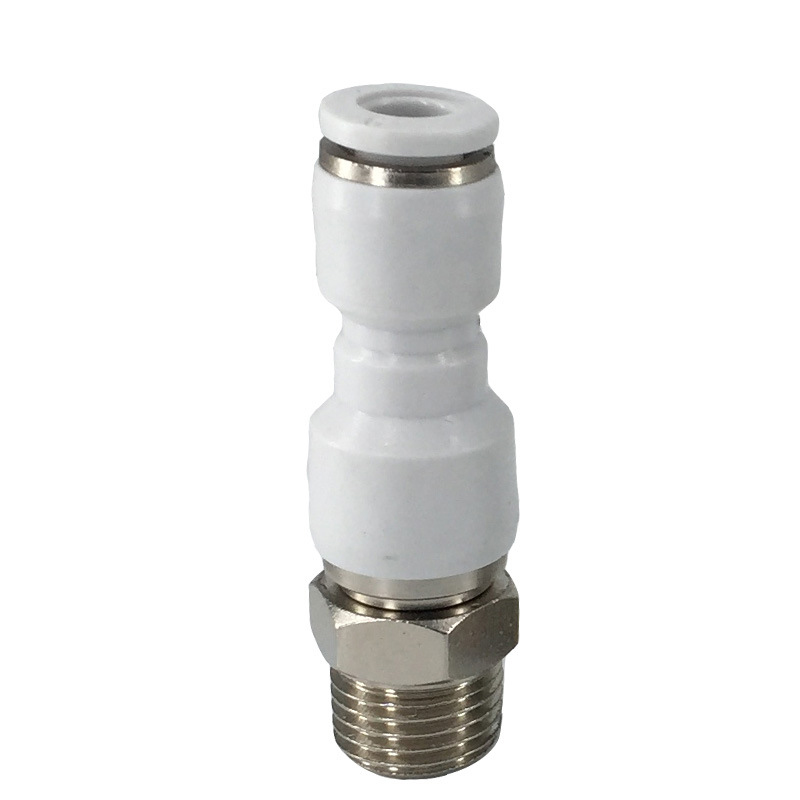

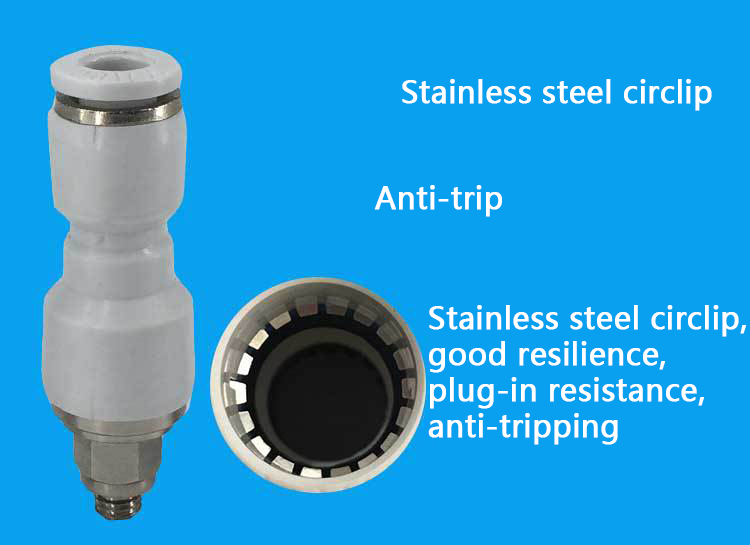

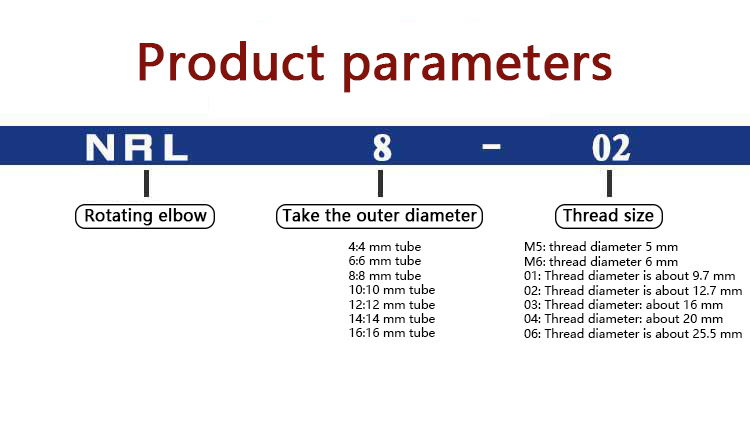

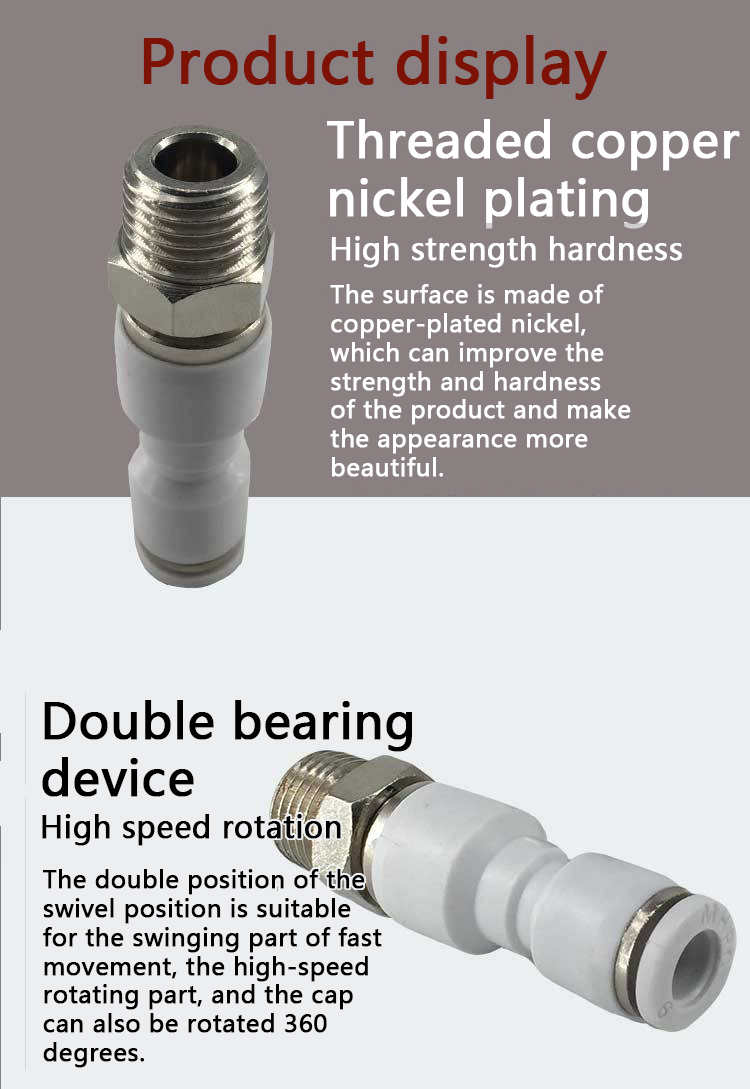

Model High Speed Rotary Joint Type Quick Connector

Material Plastic Scope Air, water Temperature resistance 20 (°C)

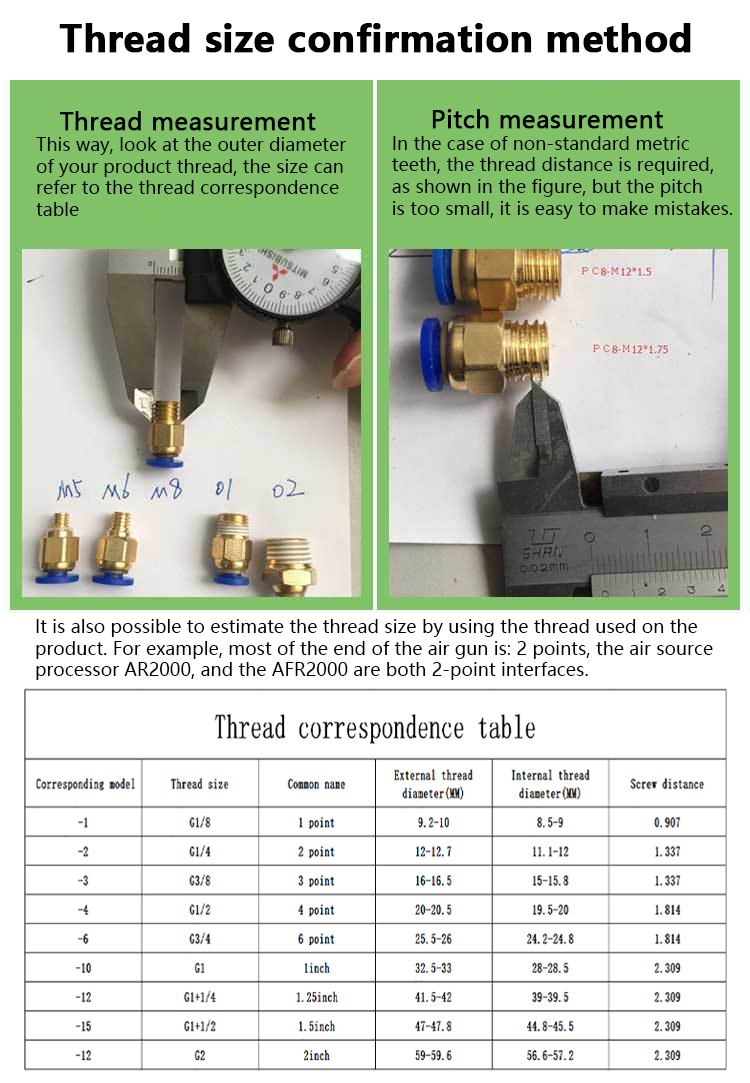

Withstand voltage 1 (MPa) Installation form M5,01,02,03,04 Pipe diameter Connected to 4 centimeters, connected to 6 centimeters, connected to 8 centimeters, connected to 10 centimeters, connected to 12 centimeters, connected to 16 centimeters (mm )

Note on the use of connectors:

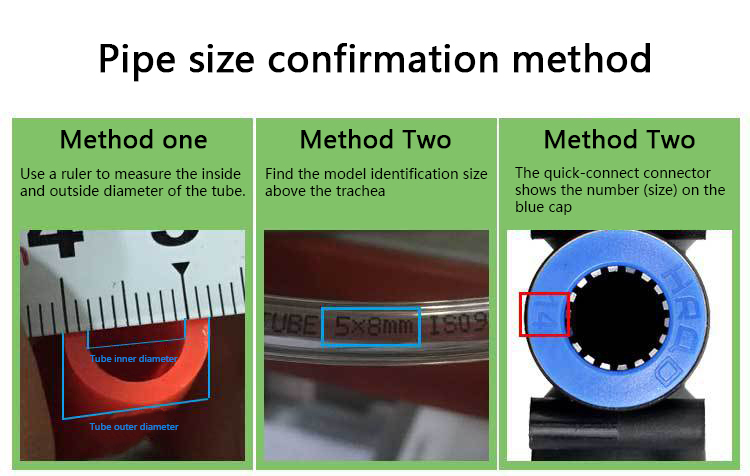

1. It is necessary to confirm that the cut surface of the pipe is vertical, there is no scratch on the outer circumference of the pipe and the pipe is not oval.

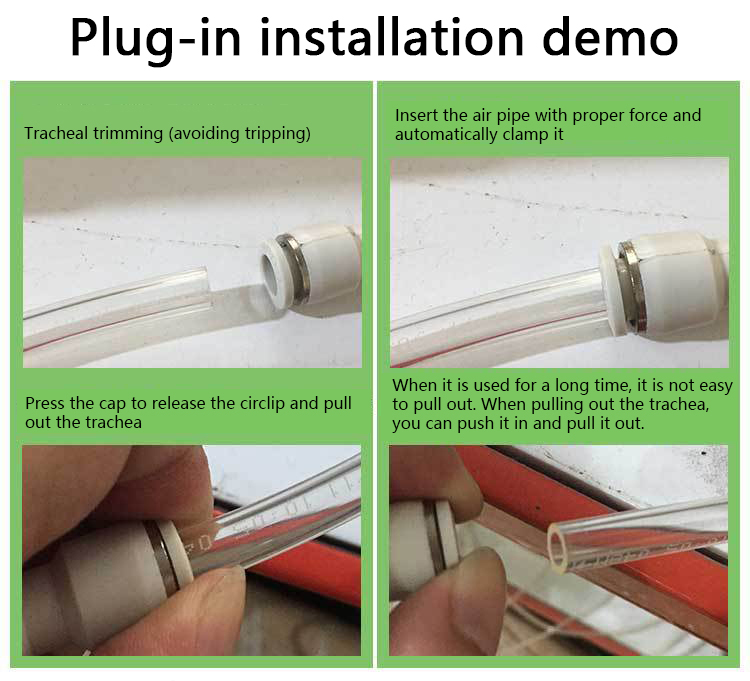

2. When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.

4. Please do not use it for purposes other than fluids.

5, do not exceed the maximum use pressure when using.

6. Do not use outside the temperature range to prevent deformation of the sealing material, which may lead to leakage.

7, do not artificially hit, bend, stretch, to prevent damage.

8. Do not use it in places such as metal powder or sand dust. If it is attached, it will cause poor work or leakage.

Precautions when disassembling: Use a suitable tool and use the outer hexagon of the fitting to remove the fitting. It is necessary to remove the sealing material that adheres to the opposite side of the pipe joint. Otherwise the adhered sealing material may enter the peripheral components, causing malfunction.
