Order number 05373 Item No. 05373

Model PB Type Metal Connector

Material Copper nickel plating Scope of application Pneumatic temperature resistance 60 (°C)

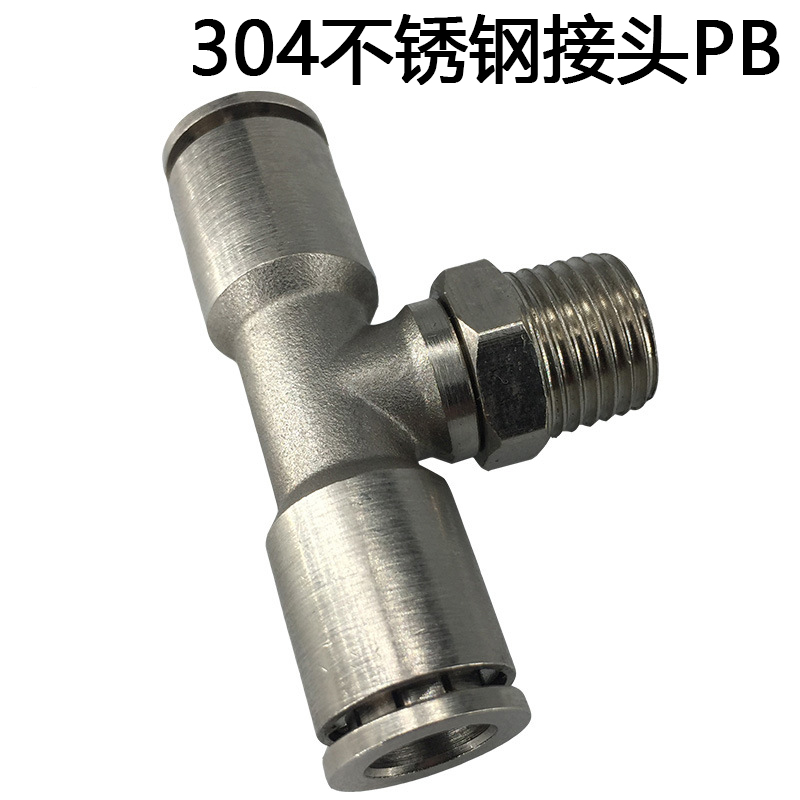

Withstand voltage 1 (MPa) Installation form 4-M5 (takes 4 threads M5), 4-01 (takes 4 threads 1 minute), 4-02 (takes 4 threads 2 points), 6-M5 (takes 6 threads M5), 6-01 (takes 6 threads 1 minute), 6-02 (takes 6 threads 2 points), 6-03 (takes 6 threads 3 points), 6-04 (takes 6 threads 4 points), 8-01 (takes 8 Thread 1 point), 8-02 (takes 8 threads 2 points), 8-03 (takes 8 threads 3 points), 8-04 (takes 8 threads 4 points), 10-01 (takes 10 threads 1 minute), 10 -02 (takes 10 threads 2 points), 10-03 (takes 10 threads 3 points), 10-04 (takes 10 threads 4 points), 12-01 (takes 12 threads 1 minute), 12-02 (takes 12 threads) 2 points), 12-03 (takes 12 threads and 3 points), 12-04 (takes 12 threads and 4 points), 14-03 (takes 14 threads and 3 points), 14-04 (takes 14 threads and 4 points), 16- 02 (takes 16 threads and 2 points), 16-03 (takes 16 threads and 3 points), 16-04 (takes 16 threads and 4 points), 16-06 (takes 16 threads and 6 points). The diameter of the pipe is copper-plated joint PB. 304 stainless copper joint PB (mm)

The quick connector is a connector that allows the pipe to be connected or disconnected without the need for tools. Quick connectors can be divided into: quick connectors for air, quick connectors for oxygen fuel gas, quick connectors for gas and liquid, quick connectors for oil pressure, quick connectors for inert gas, quick connectors for cooling water and oil, and quick connectors for semiconductors.

Features

Exchange function: air pressure, hydraulic tools, cylinders, hydraulic cylinders, attachments for metal mold related machinery.

Maintenance function: computer cooling device, cylinder maintenance and maintenance of die casting machine.

Test function: test of vacuum, pressure, leakage, operation, etc.

Conveying function: solid conveying, handling and conducting functions such as bolts and nuts.

Filling function: inert gas, nitrogen, PG, carbonic acid.

Connection function: fishing rod, fixed parts for compact laser discs, connection for mobile work and applications other than fluid transport.

function

1. Save time and effort: When the quick joint is used to disconnect and connect the oil circuit, the action is simple, saving time and manpower.

2. Fuel-saving: When the oil circuit is broken, the one-way valve on the quick connector can close the oil circuit, the oil will not flow out, and the oil and oil pressure loss will be avoided.

3. Environmental protection: When the quick joint is broken and connected, the oil will not leak and protect the environment.

4, equipment and zero, easy to transport: large equipment or hydraulic tools that need to be portable, use quick joints to separate and transport, reach the destination and then assemble.

5. Economy: All the above advantages have created economic value for customers.

Note on the use of connectors:

1. It is necessary to confirm that the cut surface of the pipe is vertical, there is no scratch on the outer circumference of the pipe and the pipe is not oval.

2. When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.

4. Please do not use it for purposes other than fluids.

5, do not exceed the maximum use pressure when using.

6. Do not use outside the temperature range to prevent deformation of the sealing material, which may lead to leakage.

7, do not artificially hit, bend, stretch, to prevent damage.

8. Do not use it in places such as metal powder or sand dust. If it is attached, it will cause poor work or leakage.

Precautions when disassembling: Use a suitable tool and use the outer hexagon of the fitting to remove the fitting. It is necessary to remove the sealing material that adheres to the opposite side of the pipe joint. Otherwise the adhered sealing material may enter the peripheral components, causing malfunction.
