Price | Member display |
Order number 02095 Item No. 02095
Model Thickened Ball Valve Double Inner Material Brass Connection Form Thread
Structure Fixed ball valve Nominal diameter 8 (mm) Applicable medium Air
Pressure environment normal pressure working temperature normal temperature standard national standard
Flow direction Two-way driving method Manual Parts and accessories Accessories
Use Cut-off type (channel position) Right-angled object Object Oxygen

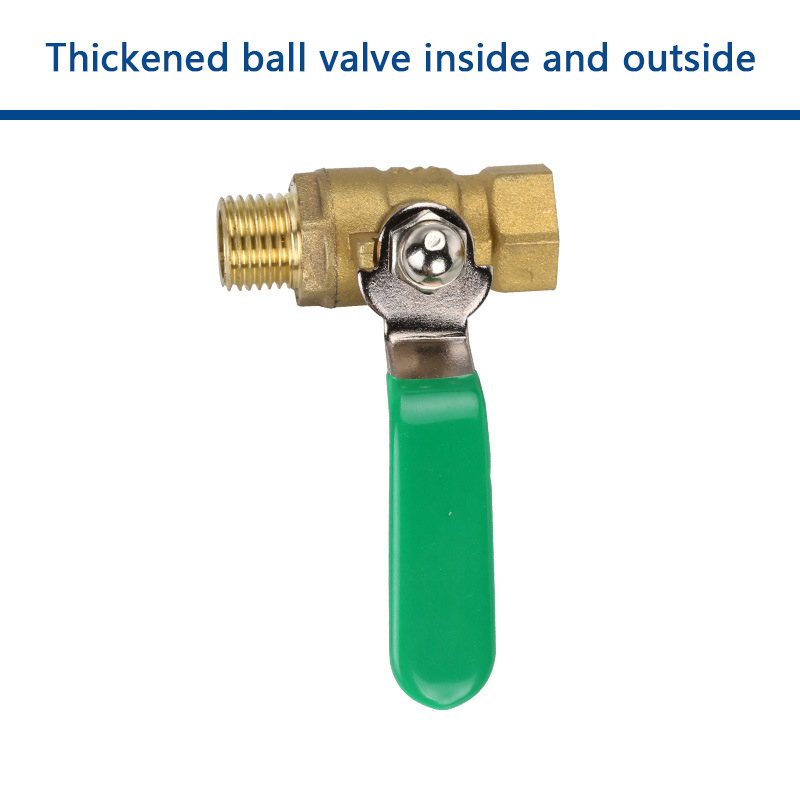

3C valve type Industrial specifications Double inner 1/4 02, double inner 3/8 03, double inner 1/2 04, double inner 3/4 06, double inner 1 inch, inner and outer 1/4 02, inner and outer 3/8 03, Inside and outside 1/2 04, inside and outside 3/4 06, double outside 1/4 02, double outside 3/8 03, double outside 1/2 04, inside and outside 1 inch cross-border supply No
Corresponding model: Thread size: Commonly used thread diameter
-01 G1/8 1 point about 9.5-10MM
-02 G1/4 2 points about 12-12.5MM
-03 G3/8 3 points Approximately 16-16.2MM
-04 G1/2 4 points about 20-20.3MM
-06 G3/4 6 points About 25.5-25.8MM

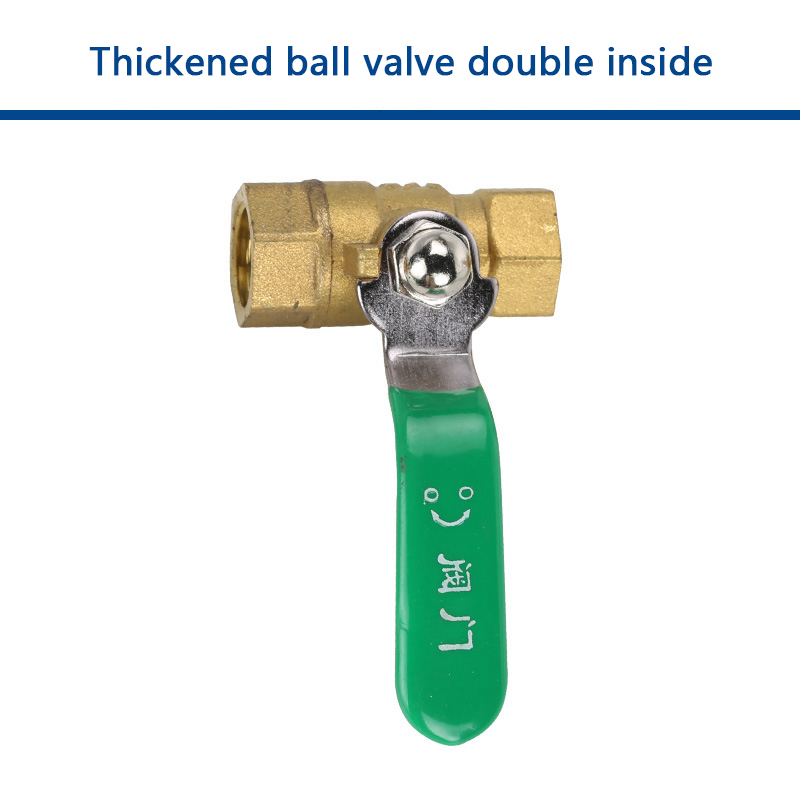

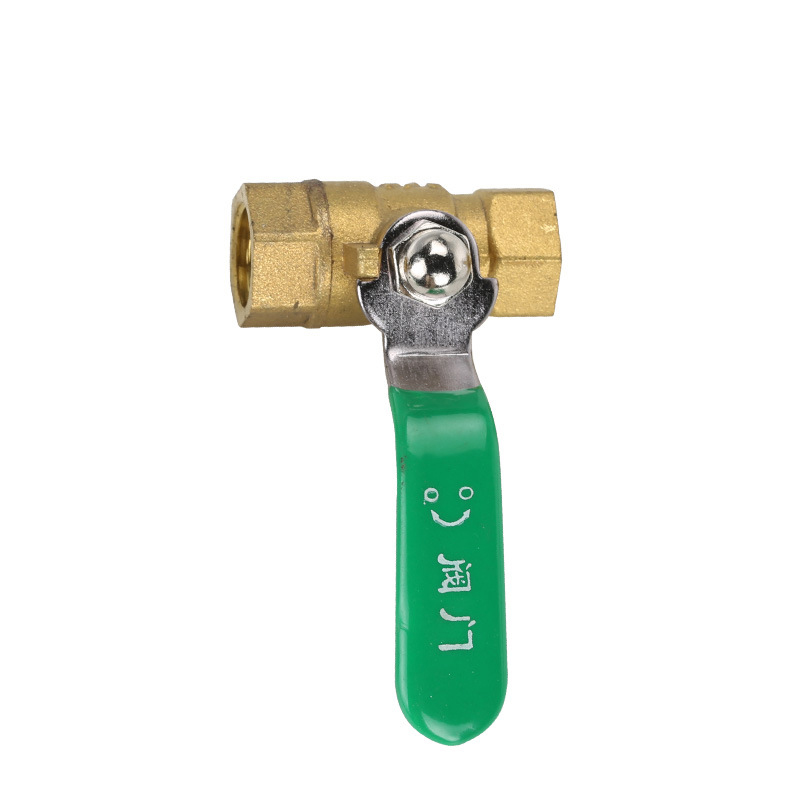

Name: Double inner copper ball valve
Specifications: 2 points DN8-2.5 inch DN65
Material: brass
Nominal pressure: 1.6MPa
Working medium: water, gas, natural gas, etc.
Working temperature: -20 °C ≤ t ≤ 110 ° C
Pipe thread conforms to ISO228 standard
