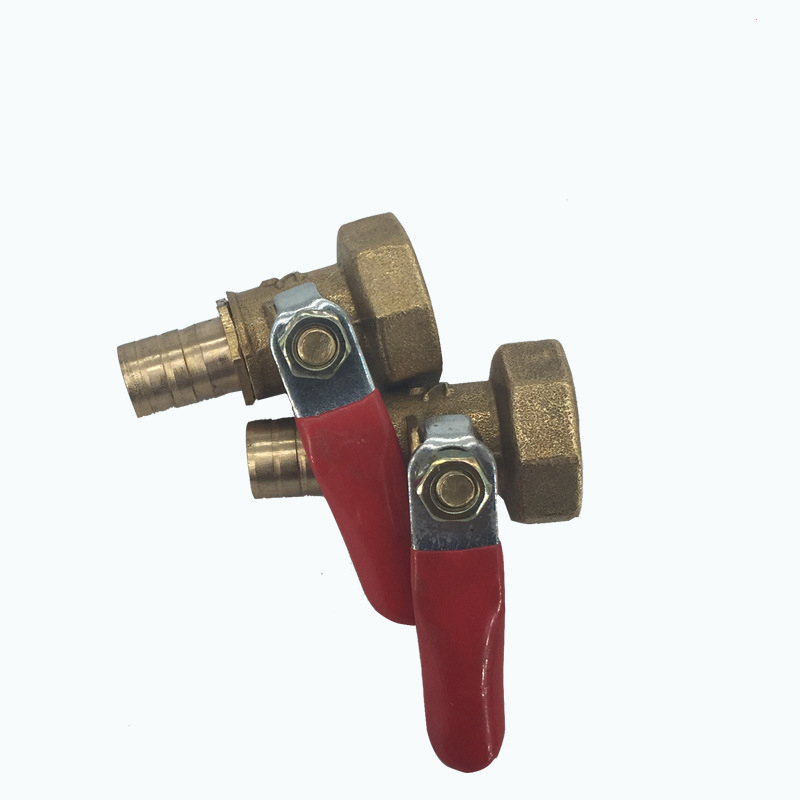

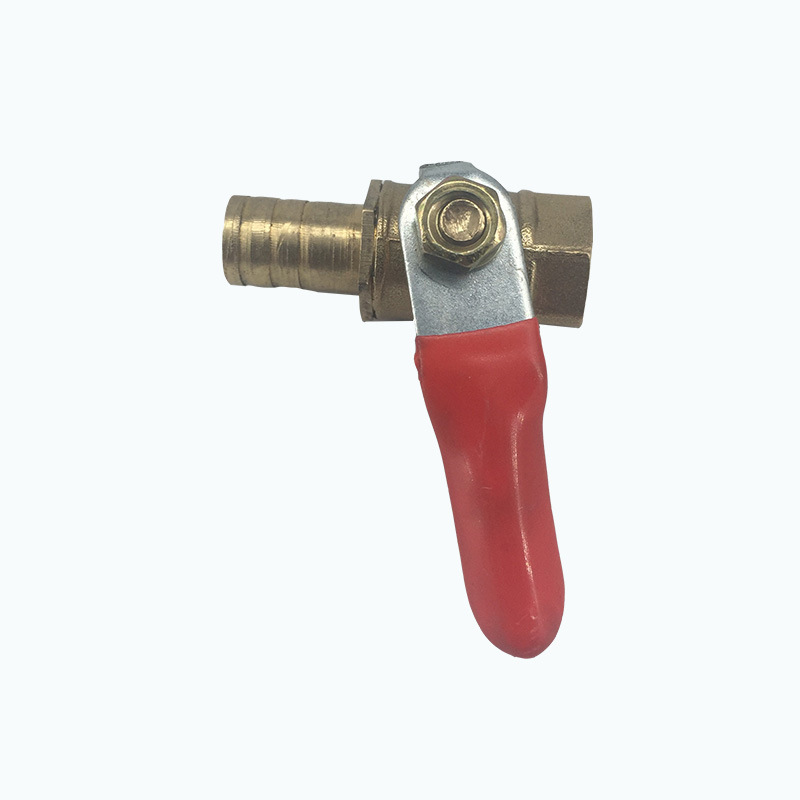

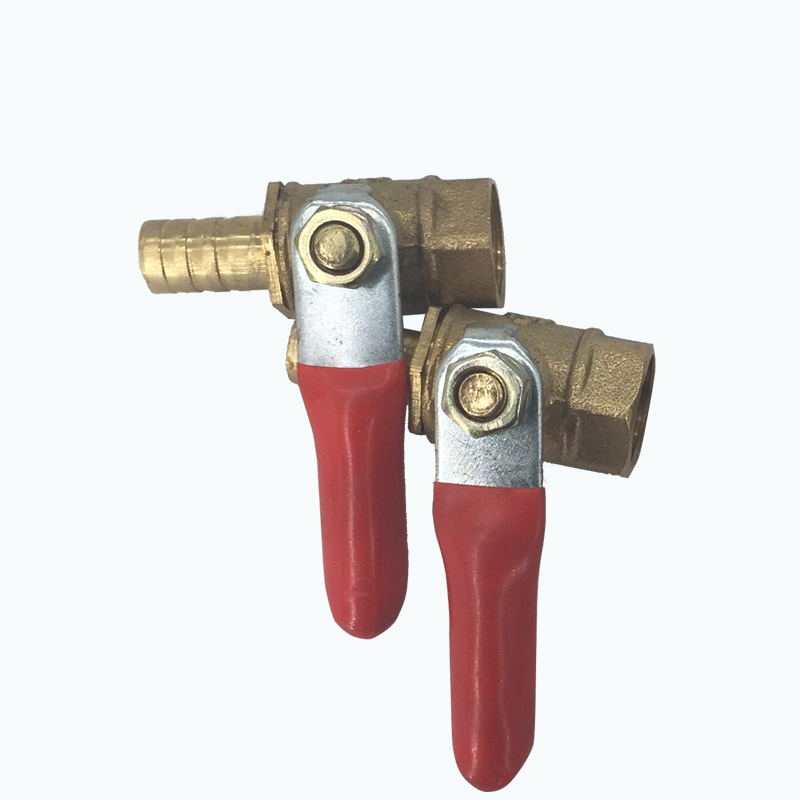

Order number 02528 Item No. 02528

Model Ball Valve Inner Screw Material Copper

Connection type Thread Nominal diameter 6 (mm) Seal type Soft seal type

Pressure environment normal pressure working temperature normal temperature standard national standard

Flow direction two-way shape ball parts and accessories accessories

Type (channel position) Right angle Applicable medium Air Use Cutoff

Specifications 1/4-6, 1/4-8, 1/4-10, 3/8-8, 3/8-10, 1/2-8, 1/2-10, 1/2-12

Note on the use of connectors:

1. It is necessary to confirm that the cut surface of the pipe is vertical, there is no scratch on the outer circumference of the pipe and the pipe is not oval.

2. When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.

4. Please do not use it for purposes other than fluids.

5, do not exceed the maximum use pressure when using.

6. Do not use outside the temperature range to prevent deformation of the sealing material, which may lead to leakage.

7, do not artificially hit, bend, stretch, to prevent damage.

8. Do not use it in places such as metal powder or sand dust. If it is attached, it will cause poor work or leakage.

Precautions when disassembling: Use a suitable tool and use the outer hexagon of the fitting to remove the fitting. It is necessary to remove the sealing material that adheres to the opposite side of the pipe joint. Otherwise the adhered sealing material may enter the peripheral components, causing malfunction.
