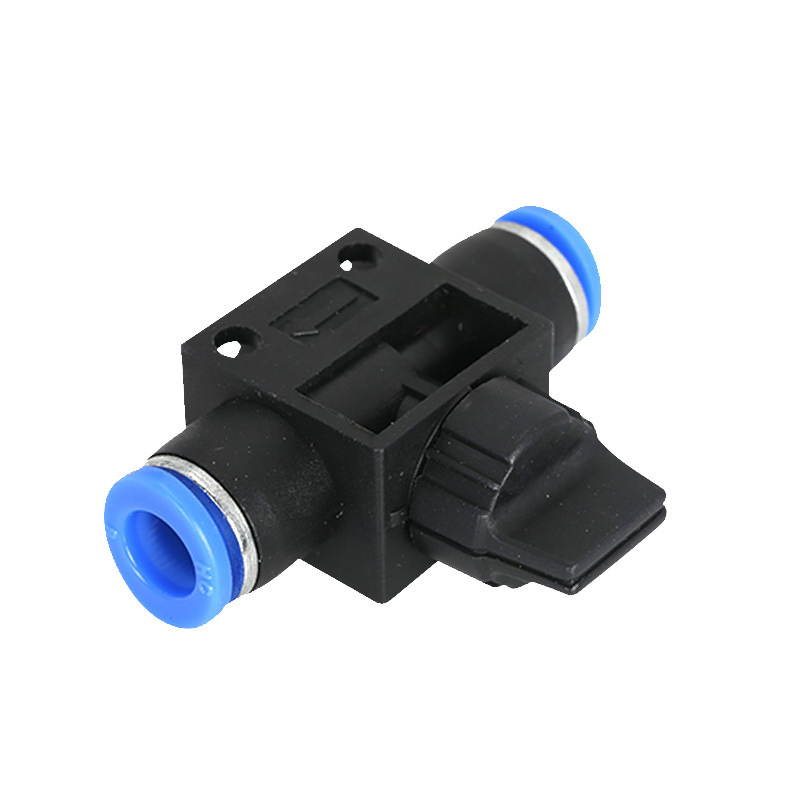

Order number 00063 Item number 00063

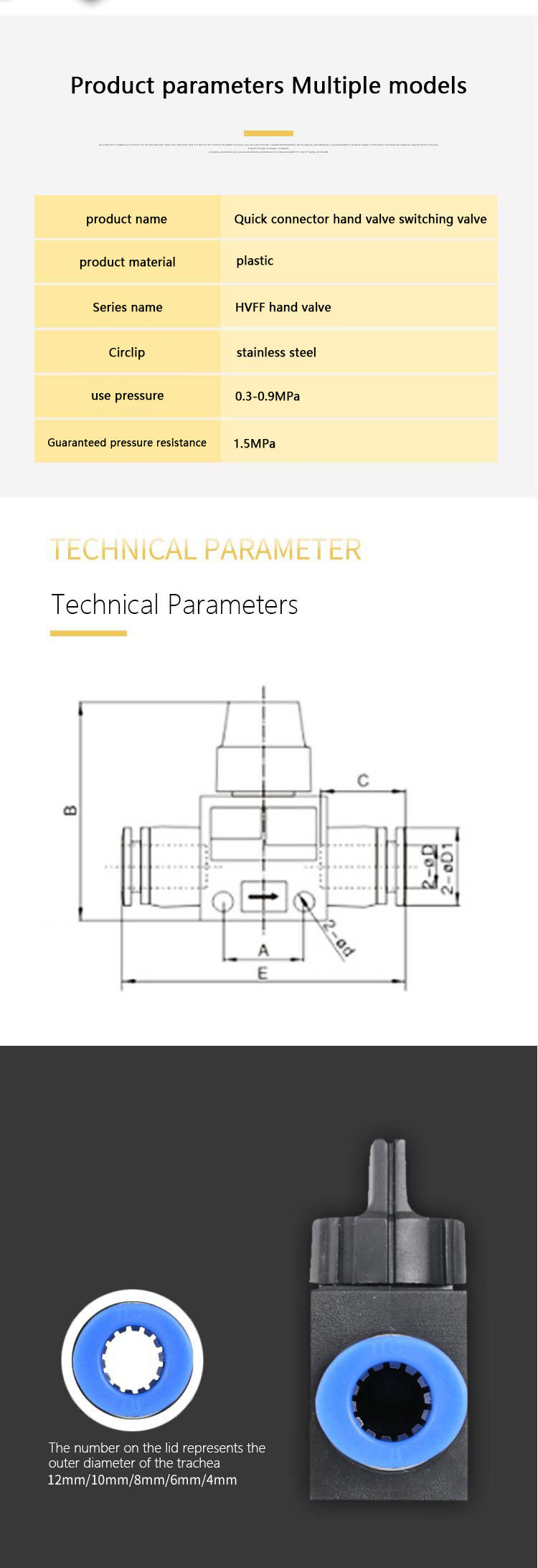

Model HHVFF Type Quick Connector

Material Plastic Scope Gas tube Temperature resistance 0-70 (°C)

Pressure resistance 0-1 (MPa) Installation form Plug and play Connection diameter Connect 6 PCT, connect 8 PCT, connect 10 PCT, connect 12 PCT (mm)

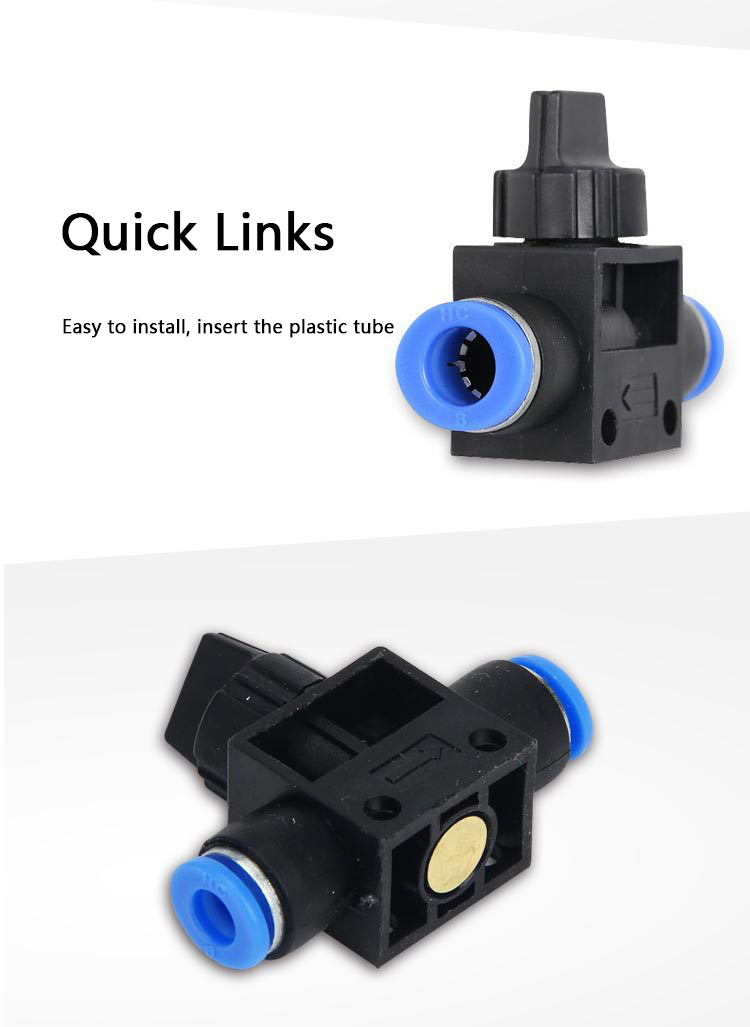

Connector features:

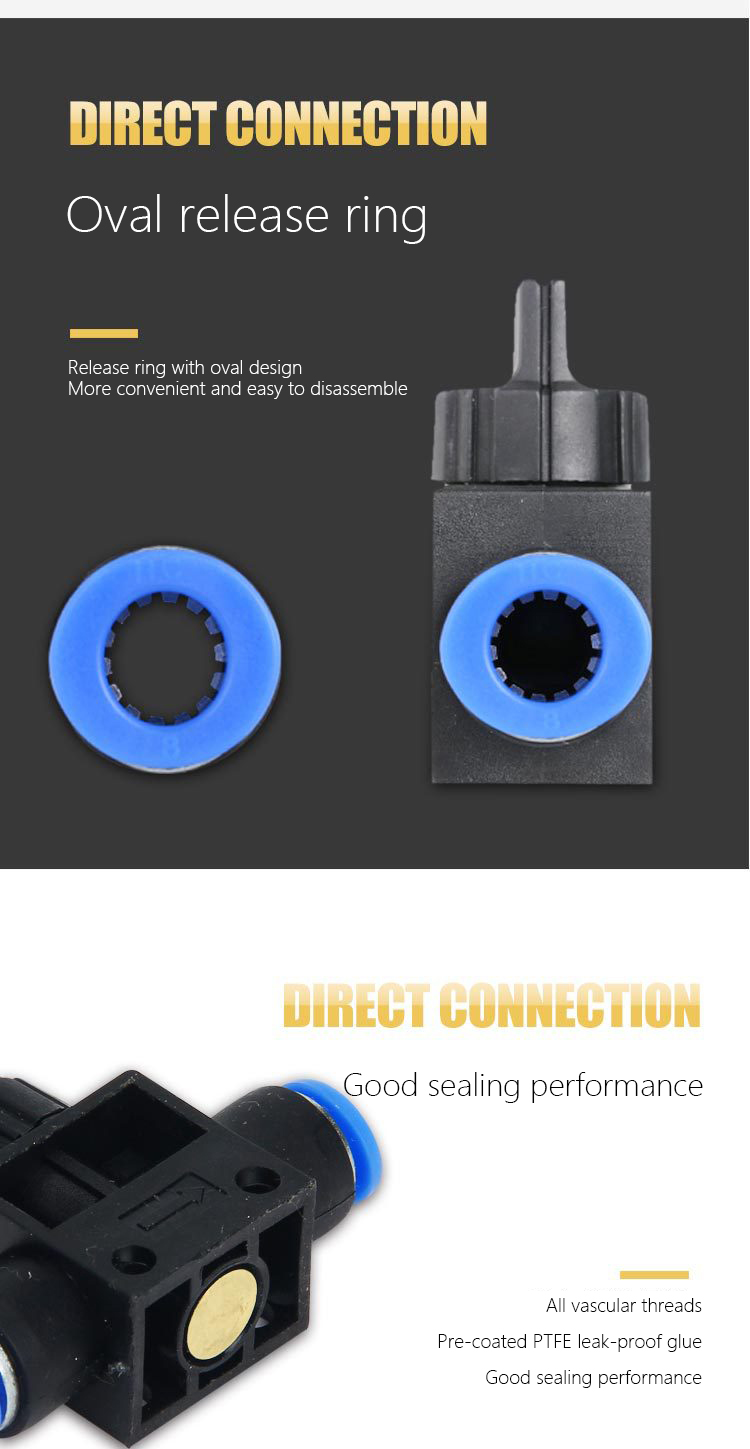

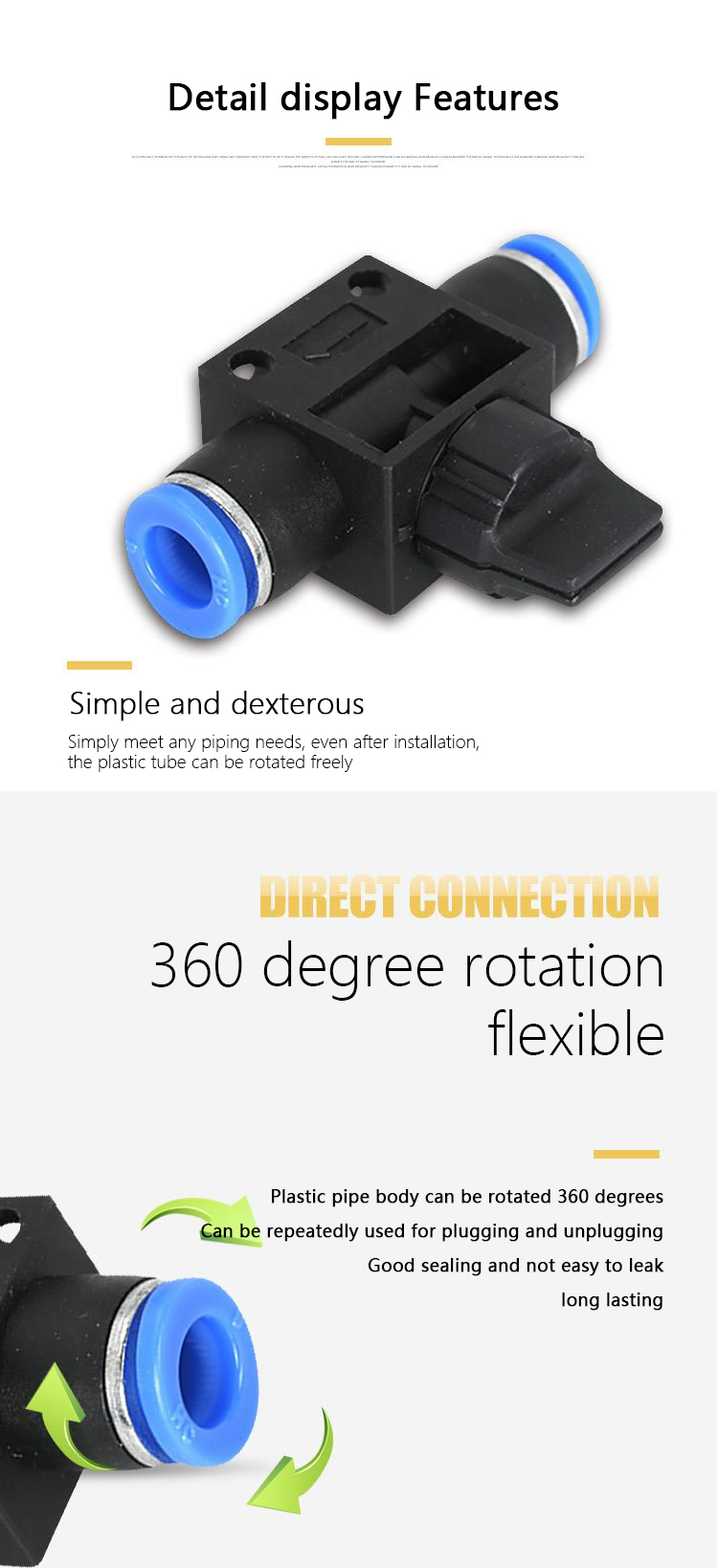

  The pneumatic joint is a connecting piece mainly used for pneumatic tools and air piping to realize pipeline communication. The material of the pneumatic joint is usually copper, plastic, plastic steel, stainless steel, etc. The steel joint has strong corrosion resistance, and the full copper joint is resistant to pressure. The maximum pressure is 15 kg and the plastic joint has a pressure of 10 kg. Quick connector features: 1. Quick installation, simple and smart, save space. 2. Various types to meet the needs of any pneumatic pipe. 3. After installation, the plastic pipe body can also be arbitrarily turned. 4. The release ring adopts an elliptical design, which makes the disassembly more labor-saving and convenient.

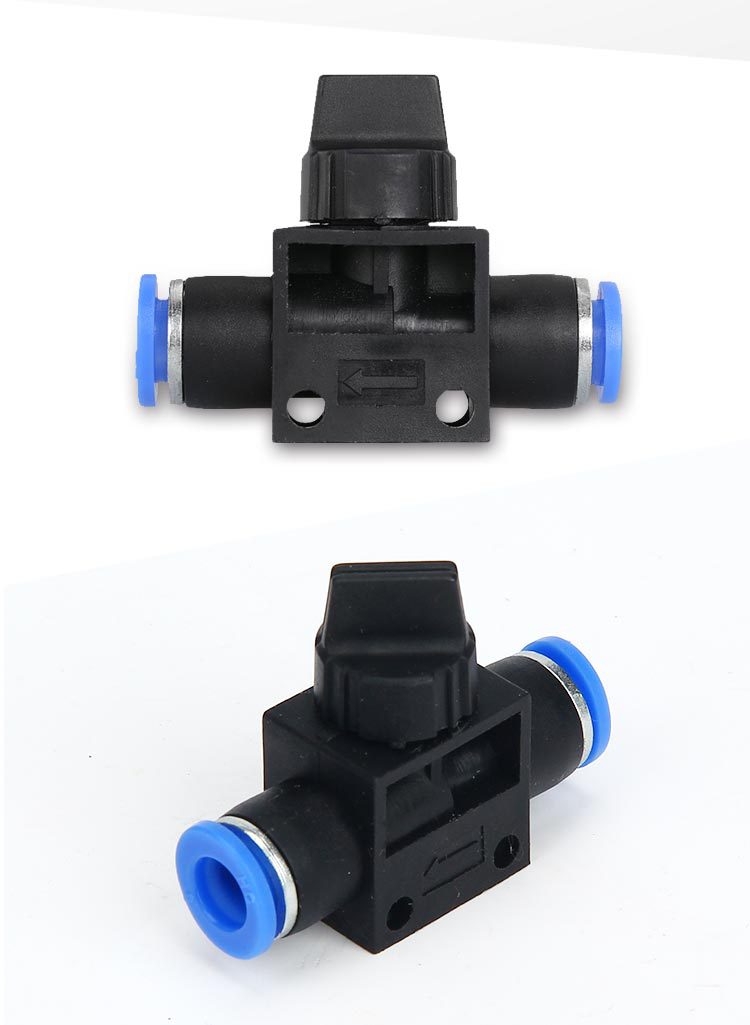

Pneumatic joint shape:

Pneumatic joints are usually straight-through, right-angled, three-way, four-way, five-way, through-plate, throttling, etc., and can be used for pipe connections in different situations.

Pneumatic joints are widely used to:

     Pneumatic joints are mainly used for connection of marine, aerospace, instrumentation, automation equipment, electric current signal transmission and air tools, air compressors, grinders, air drills, impact wrenches, pneumatic screwdrivers and other pneumatic tools. Mining machinery, power transmission, lifting pneumatic winch, food and beverage machinery, auto parts tightening assembly, screw cap (capping) machine, filling machine, power of various pneumatic tools, multi-function machine tools, pipe dredging machine, high pressure cleaner , petroleum machinery, marine machinery, printing machinery, mixing machinery, packaging machinery, auto parts factory, metal processing, drilling and tapping, chemical machinery, woodworking machinery, winch, spraying equipment machinery, beveling machine, pneumatic chain saw, Inflammable, explosive, dusty, heavy-duty, wet and other workplaces cotton spinning, chemical fiber, light industry, metallurgy, lifting, transportation, environmental protection, three-dimensional parking, mining, packaging, petrochemical, electronic production equipment, home appliances, petrochemical, steel , printing, financial equipment, etc.

Note on the use of connectors:

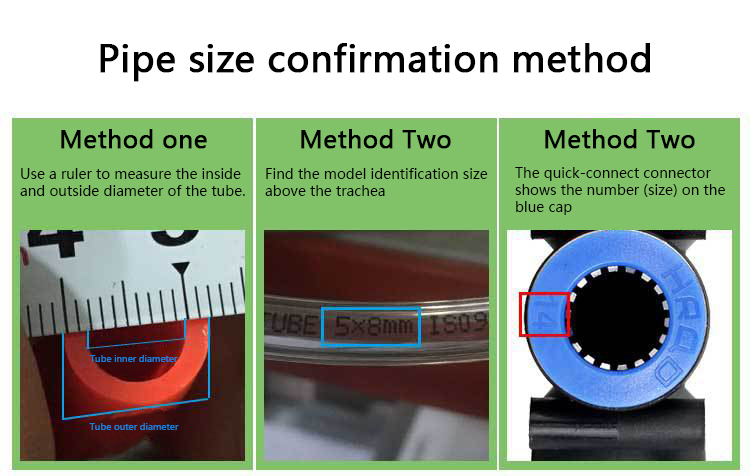

1. It is necessary to confirm that the cut surface of the pipe is vertical, there is no scratch on the outer circumference of the pipe and the pipe is not oval.

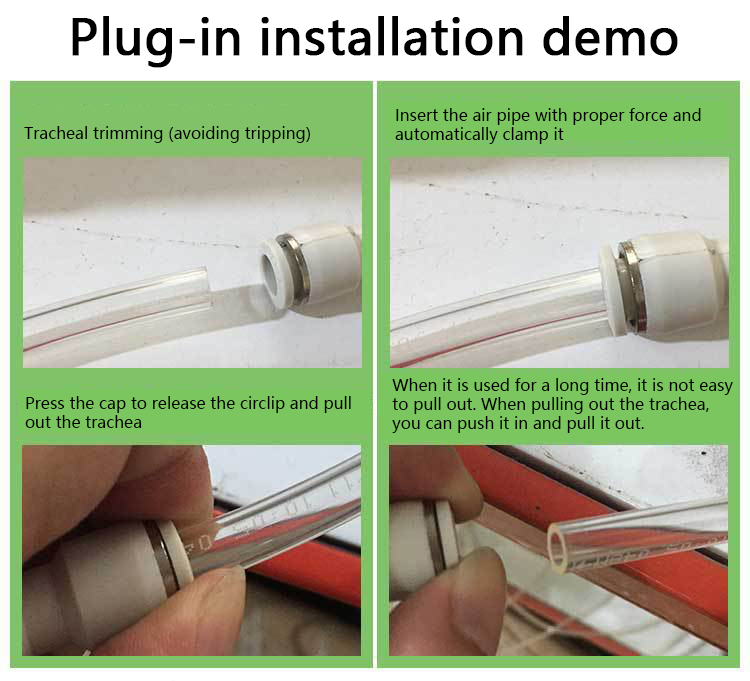

2. When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.

4. Please do not use it for purposes other than fluids.

5, do not exceed the maximum use pressure when using.

6. Do not use outside the temperature range to prevent deformation of the sealing material, which may lead to leakage.

7, do not artificially hit, bend, stretch, to prevent damage.

8. Do not use it in places such as metal powder or sand dust. If it is attached, it will cause poor work or leakage.

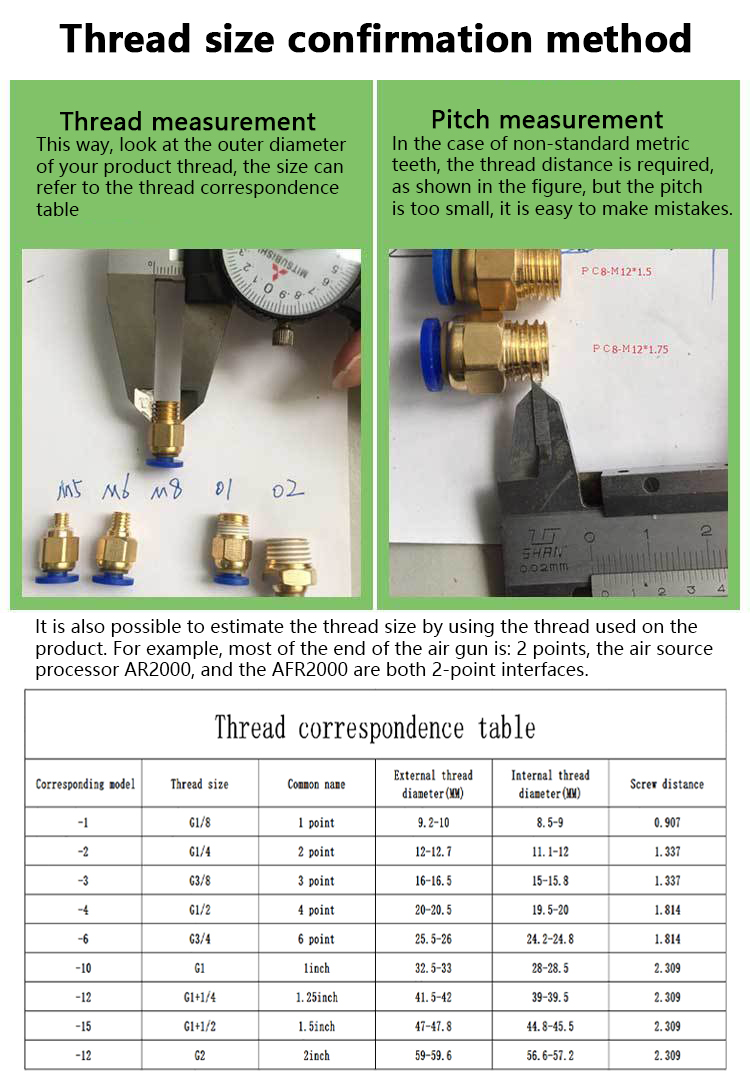

Precautions when disassembling: Use a suitable tool and use the outer hexagon of the fitting to remove the fitting. It is necessary to remove the sealing material that adheres to the opposite side of the pipe joint. Otherwise the adhered sealing material may enter the peripheral components, causing malfunction.
