Order No. 00057 Processing Customization No Item No. 00057

Model HPW Type Quick Connector

Material Plastic Scope Gas tube Temperature resistance 0-70 (°C)

Pressure resistance 0-1 (MPa) Installation form Plug and play Connection diameter Connect 6 PCT, connect 8 PCT, connect 10 PCT, connect 12 PCT, connect 4 PCT (mm)

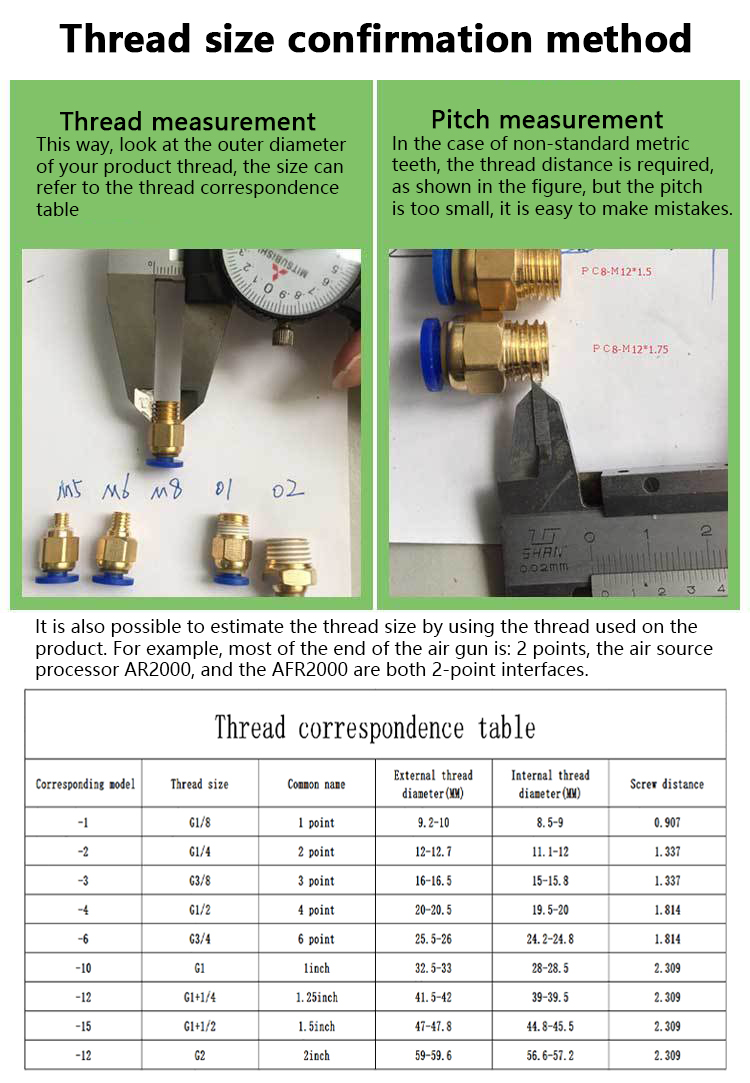

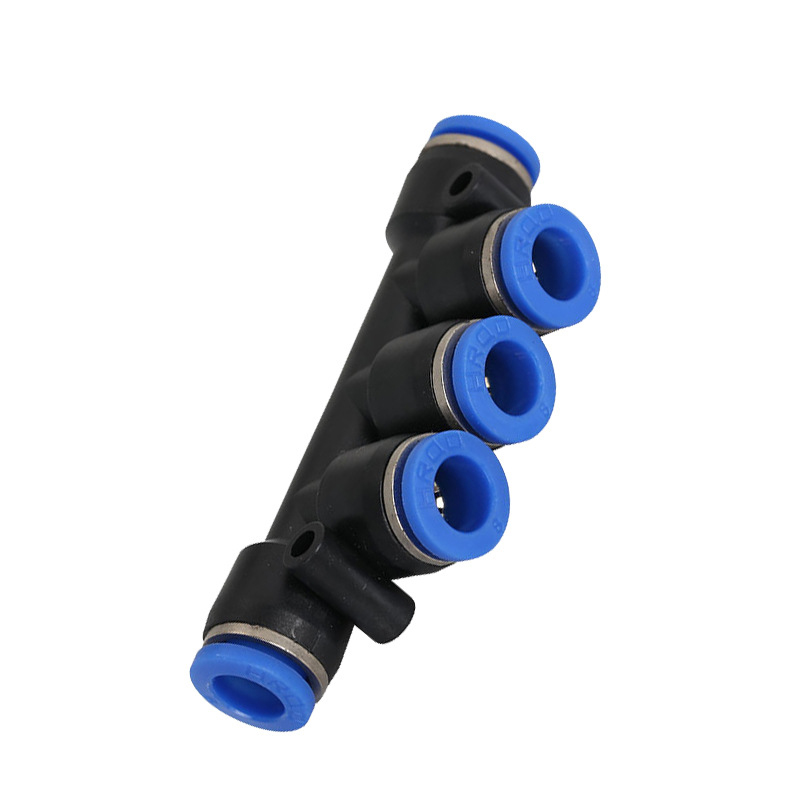

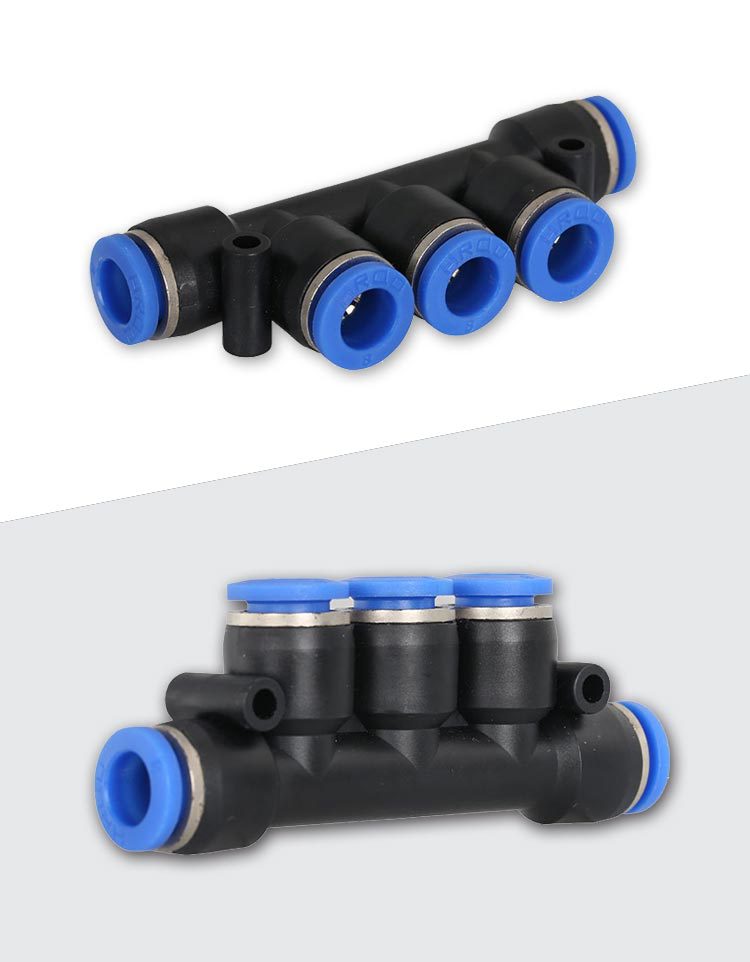

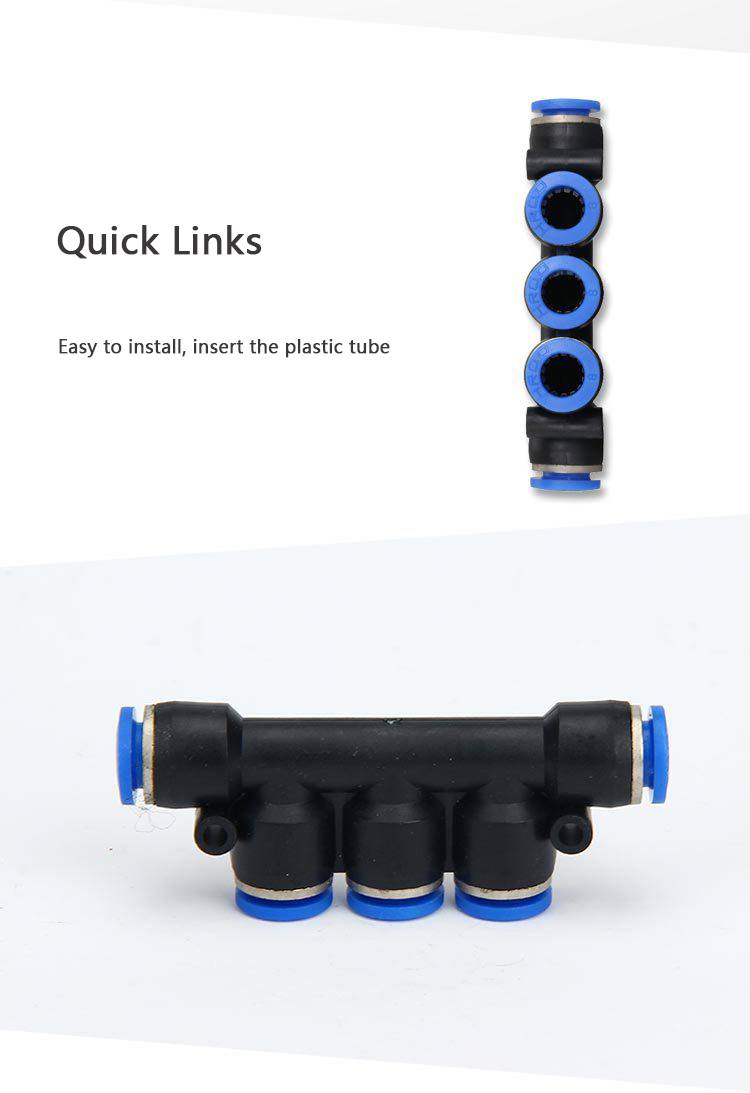

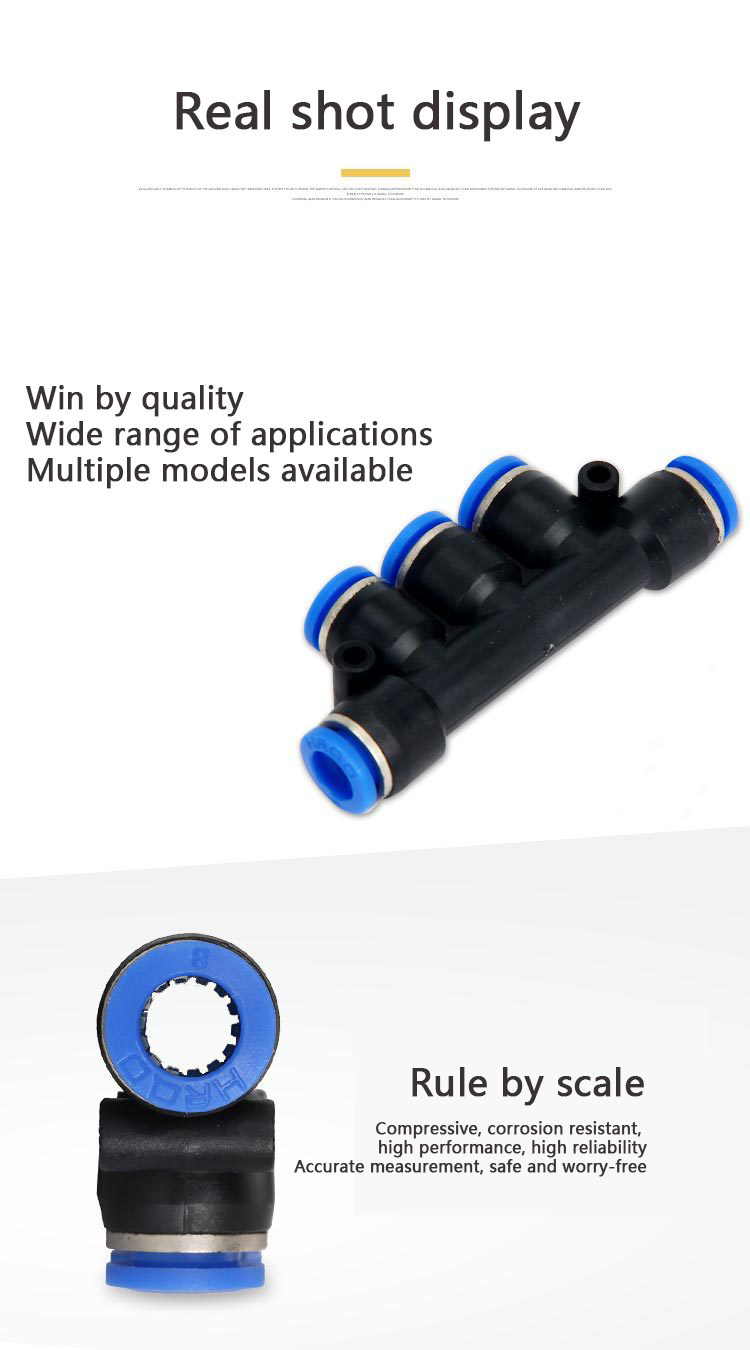

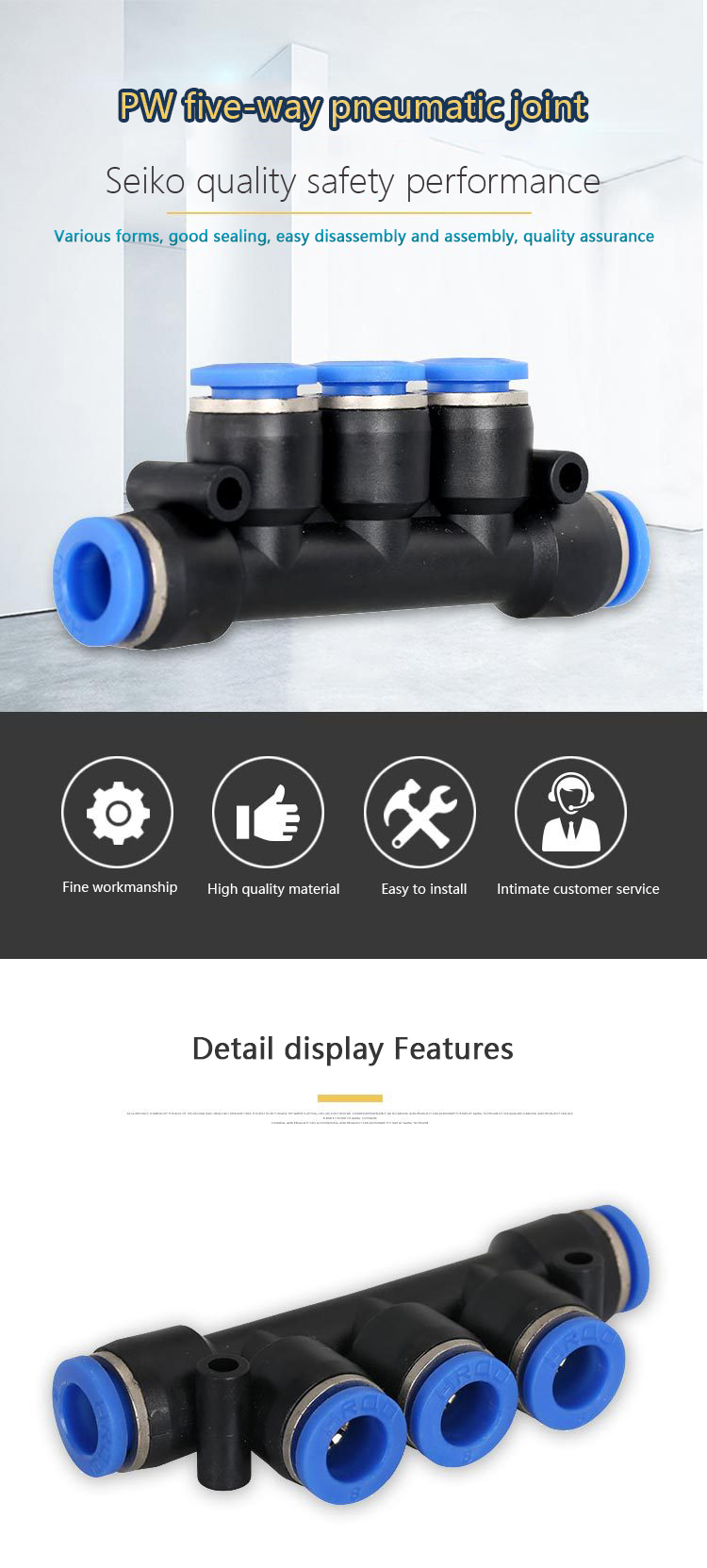

The pneumatic quick connector is a quick connector that is mainly used for air piping and pneumatic tools. It can connect the pipe to or from the pipe without tools. This connector is suitable for air where the medium is suitable for loading and unloading and reliable performance.

product features

★ Quick installation, simple and smart, saving space;

★ Various types to meet the needs of any pneumatic pipe;

★ Even after installation, the plastic pipe body can be arbitrarily turned;

★The button adopts elliptical design, which makes it easier to disassemble;

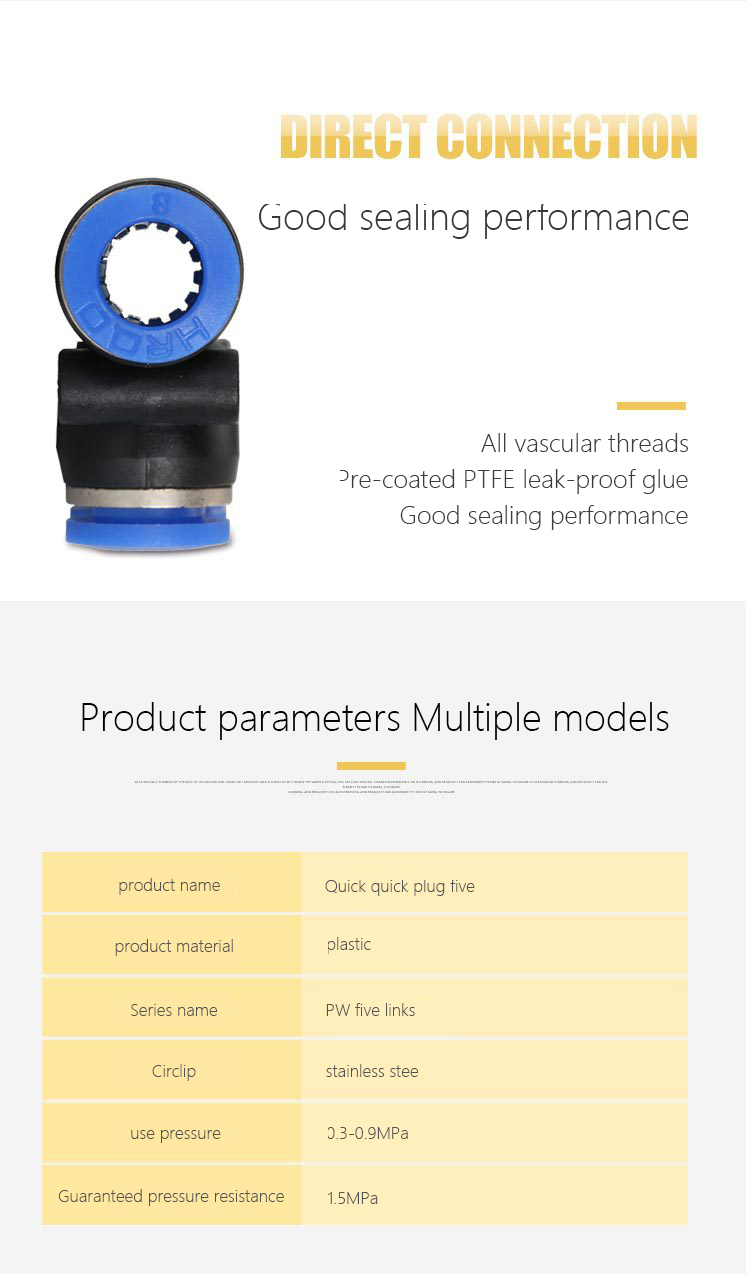

★All taper pipe threads are pre-coated with PTFE leak-proof glue, and the sealing performance is good;

★The joints are all equipped with hexagon sockets for easy installation in narrow places.

Takeover considerations

● Make sure that the tracheal cross section is vertical and there is no scar on the outer circumference of the trachea;

●To confirm the insertion of the trachea, be sure to insert it into the bottom of the joint. If it is not inserted into the bottom, it may cause air leakage.

● After the trachea is inserted, pull it down and try to confirm that the trachea can not be pulled out.

● Use a suitable tool to mount the joint body with the outer hexagon of the pipe joint;

● When tightening the joint thread, it should be noted that the installation strength should not be too large or too small;

● After the joint is connected, the product with the same direction of contact can be adjusted within the tightening range.

Note on the use of connectors:

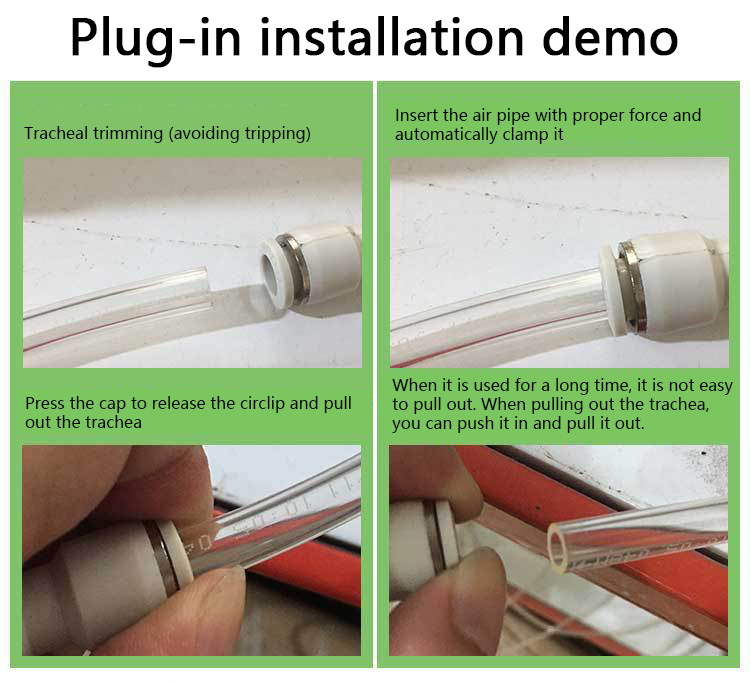

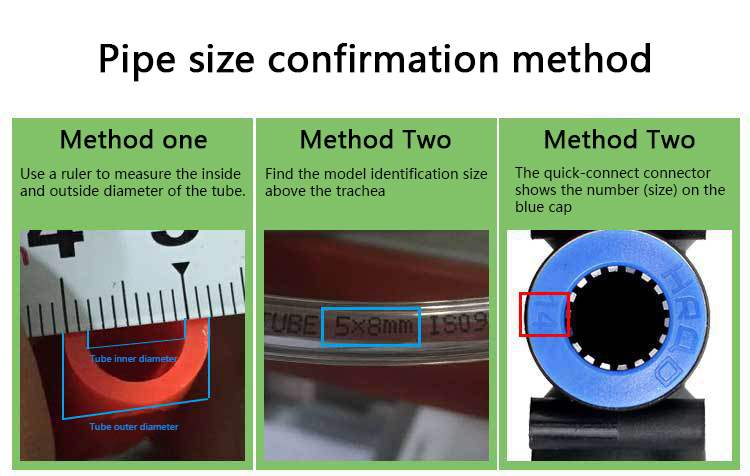

1. It is necessary to confirm that the cut surface of the pipe is vertical, there is no scratch on the outer circumference of the pipe and the pipe is not oval.

2. When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out.

4. Please do not use it for purposes other than fluids.

5, do not exceed the maximum use pressure when using.

6. Do not use outside the temperature range to prevent deformation of the sealing material, which may lead to leakage.

7, do not artificially hit, bend, stretch, to prevent damage.

8. Do not use it in places such as metal powder or sand dust. If it is attached, it will cause poor work or leakage.

Precautions when disassembling: Use a suitable tool and use the outer hexagon of the fitting to remove the fitting. It is necessary to remove the sealing material that adheres to the opposite side of the pipe joint. Otherwise the adhered sealing material may enter the peripheral components, causing malfunction.
