Order number 00127 Processing customization No Item No. 00127

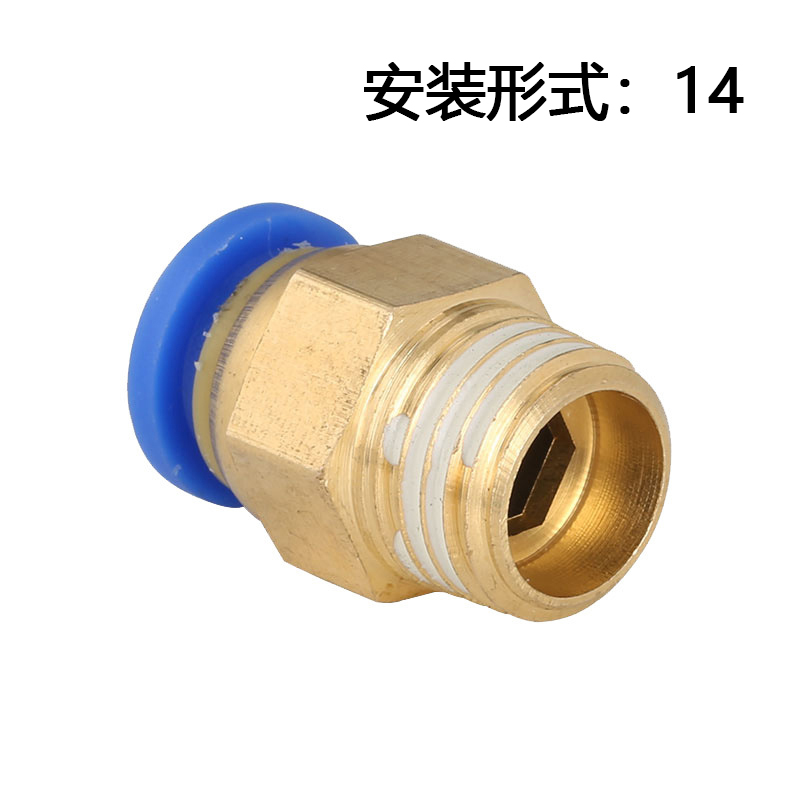

Model PC8-02 Type Quick Connector

Material Copper, plastic Applicable range Air pipe Temperature resistance 0-70 (°C)

Withstand voltage 0-1(MPa) Mounting form 4,6,8,10,12,14,16,5 Pipe diameter M5,01,02,03,04(mm)04 quick-release copper pneumatic joint

Thread selection reference:

  Corresponding model: Thread size: Commonly used thread diameter

-01 G1/8 1 point about 9.5-10MM

-02 G1/4 2 points about 12-12.5MM

-03 G3/8 3 points Approximately 16-16.2MM

-04 G1/2 4 points about 20-20.3MM

-06 G3/4 6 points About 25.5-25.8MM
