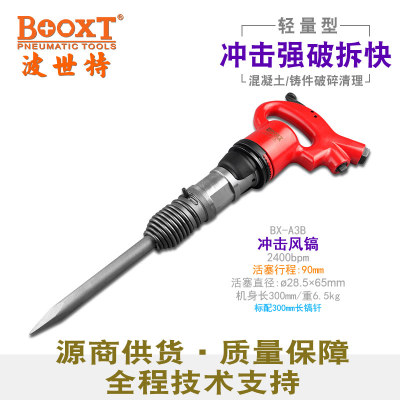

Imported No Order No. BX-A3B Customized processing No

Item No. BX-A3B Brand BOOXT Model BX-A3B

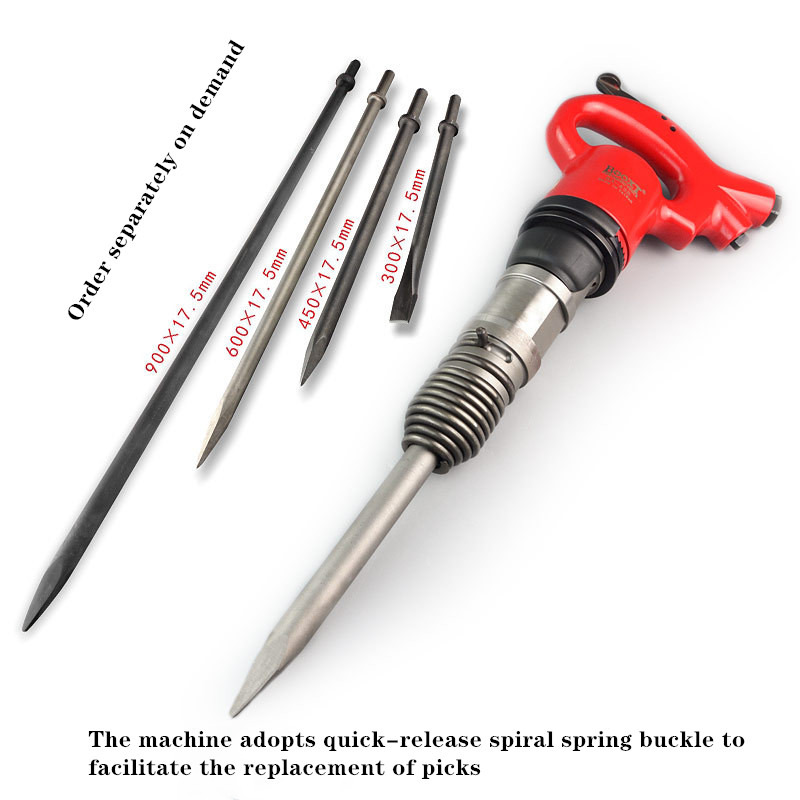

Chisel shape Round four corners Chisel diameter 20 (mm) Piston diameter 28.5 (mm)

Hammer stroke 90 (mm) Air consumption 9 (L/s) Air intake pipe size 3/8

Working pressure 0.65 (Mpa) Hammer weight 6.5 (kg) Applicable scope Suitable for removal of paint, rust, welding stains; removal of cement; mining of mineral deposits; culvert rock breaking

External dimension 300 (mm) Machine weight 6.5 (kg) Working pressure 0.65Mpa

Average air consumption 0.75 cubic meters per minute Tool length 300mm Hammer net weight 6.5 (kg)

Whether it is a special supply source for cross-border export? No series Air pick The number of blows 2400bpm
