Imported No Order No. BX-450XX Customized processing No

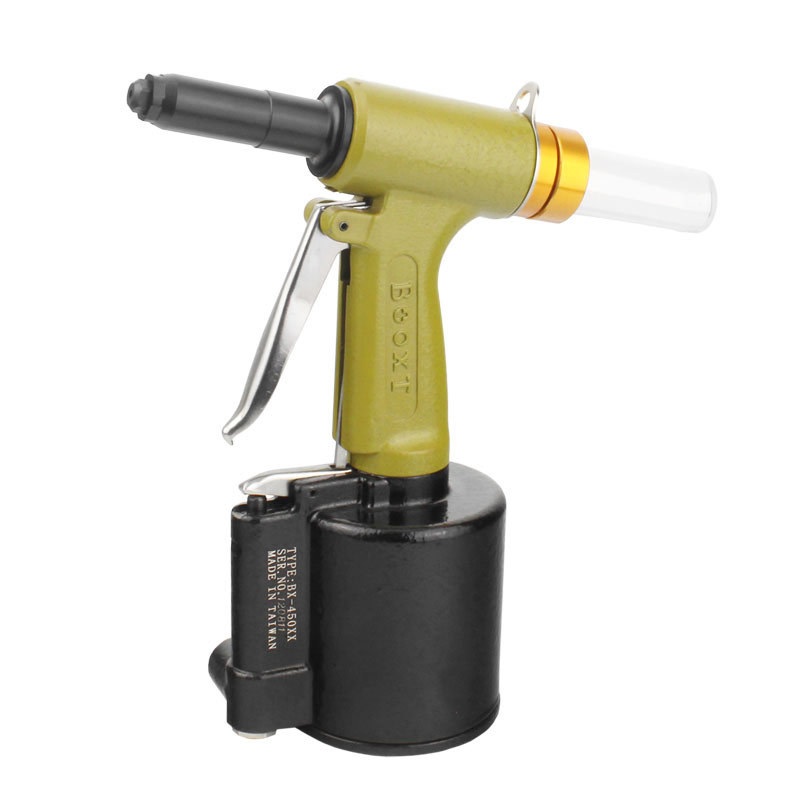

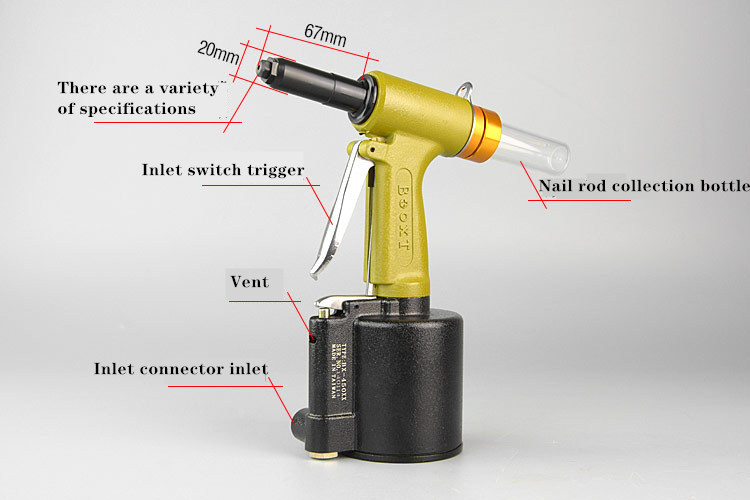

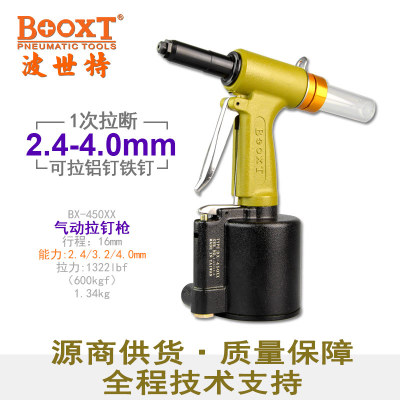

Item No. BX-450XX Brand BOOXT Model BX-450XX

Maximum pull stud size 2.4, 3.2, 4.0 (mm) Self-contained gun head size 4.0 (mm) Pull force 1322 (kg)

Pull stud stroke 16 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.13m3/min Height 248 (mm)

Tool height 248 (mm) Total length 280 (mm) Applicable scope Suitable for common blind rivet riveting operations

Tool length 280mm Tool net weight 1.34 (kg) Whether it is a source of exclusive supply for cross-border export No
