Imported No Order No. BX-500CX Customized processing No

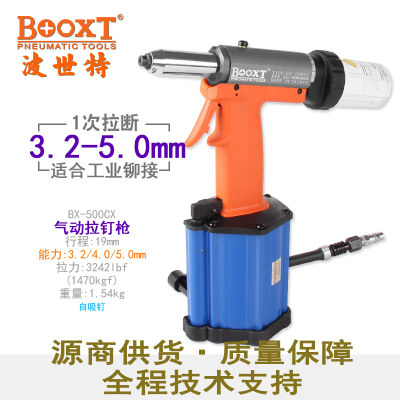

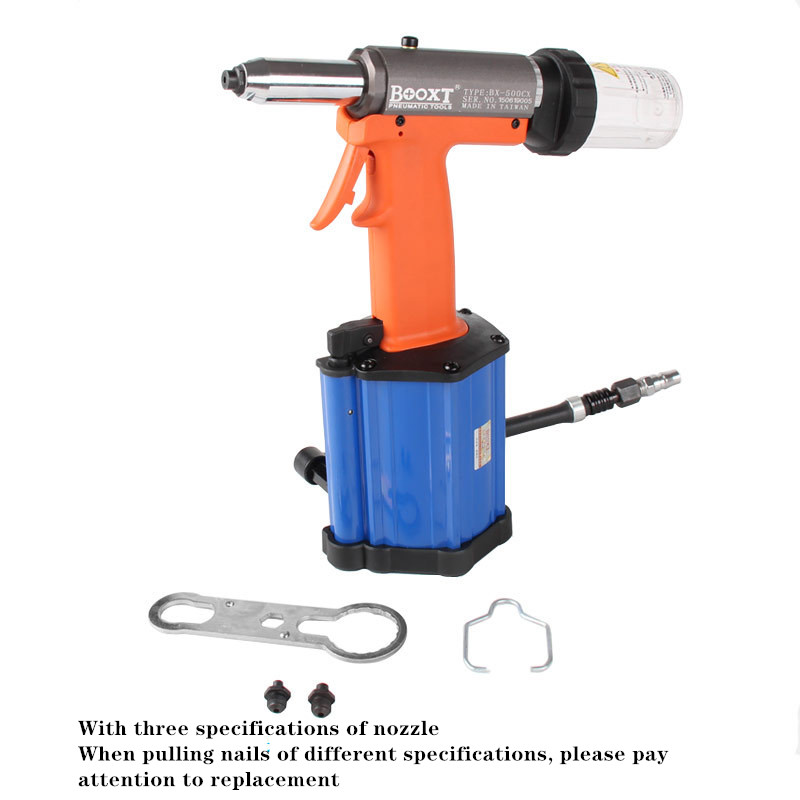

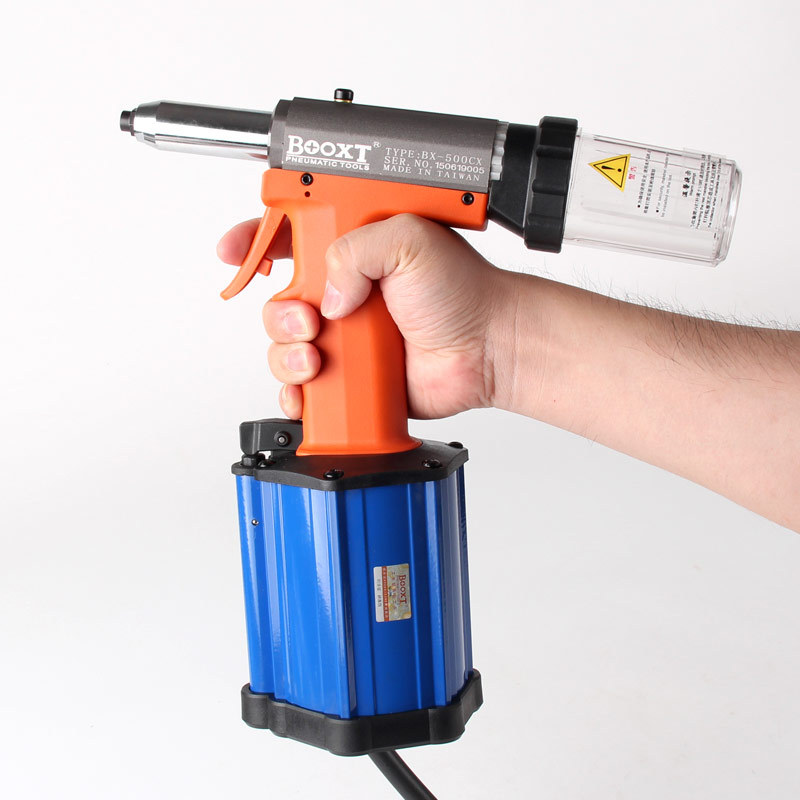

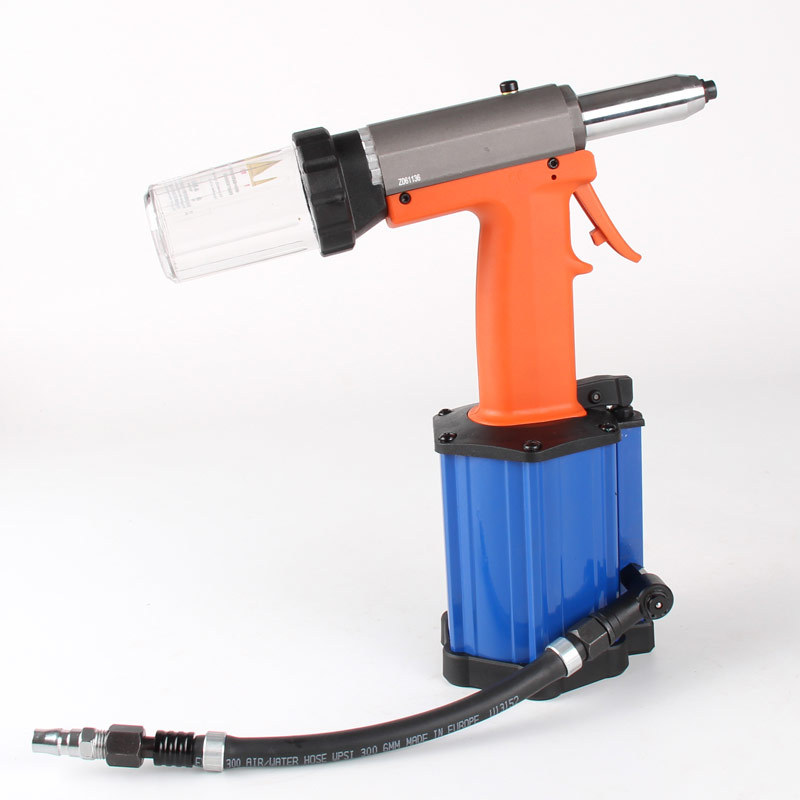

Item No. BX-500CX Brand BOOXT Model BX-500CX

Maximum pull stud size 5.0 (mm) Self-contained gun head size 3.2/4.0/5.0 (mm) Pull force 1470 (kg)

Pull stud stroke 19 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.13m3/min Height 320 (mm)

Tool height 320 (mm) Total length 280 (mm) Applicable scope Used in industrial riveting operations, suitable for blind rivets of various materials

Tool length 280mm Tool net weight 1.55 (kg) Is it a source of exclusive supply for cross-border export
