Imported No Order No. 0 Customized processing No

Item No. 0 Brand BOOXT Model BX-500G

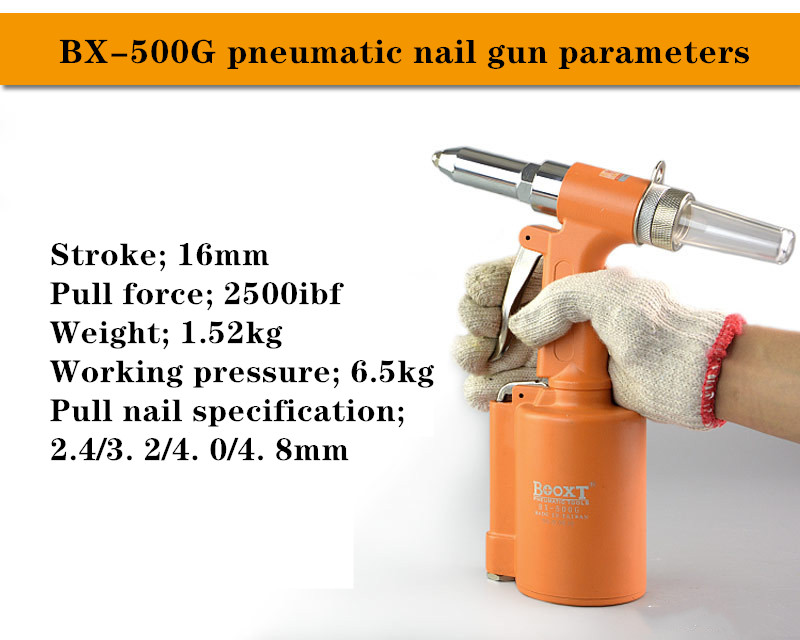

The maximum pull stud size 2.8-4.8 (mm) The size of the self-contained gun head 4.8 (mm) The pulling force is 2500 (kg)

Pull stud stroke 16 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.13m3/min Height 272 (mm)

Tool height 272 (mm) Total length 260 (mm) Applicable scope Suitable for common blind rivet riveting operations

Tool length 260mm Tool net weight 1.52 (kg) Is it a source of exclusive supply for cross-border export
