Imported or not No Order number BX-604 Customized processing No

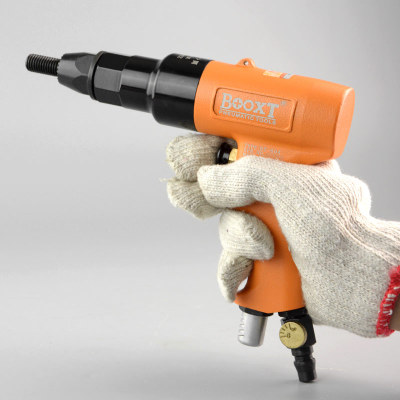

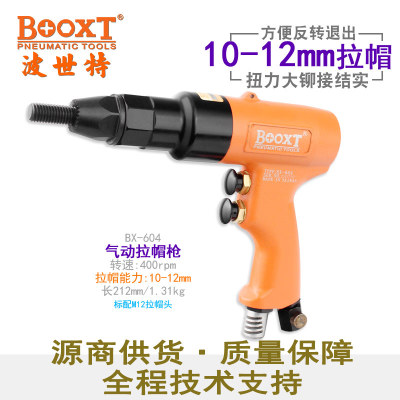

Item No. BX-604 Brand BOOXT Model BX-604

Maximum pull stud size M12 (mm) Self-contained gun head size M12 (mm) Pull force 1900 (kg)

Pull stud stroke 5 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.61m3/min Height 170 (mm)

Tool height 170 (mm) Total length 212 (mm) Scope of application Suitable for industrial riveting operations such as hardware products and plastic products.

Tool length 212mm Tool net weight 1.31 (kg) Is it a source of exclusive supply for cross-border export?
