Price | Member display |
Imported No Order No. BX-800A1 Customized processing No

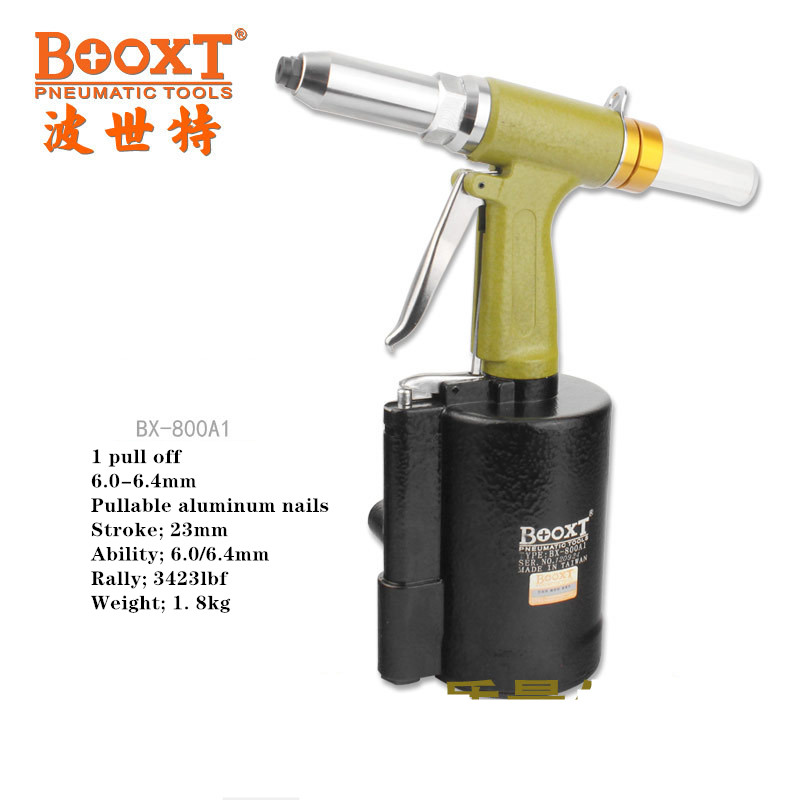

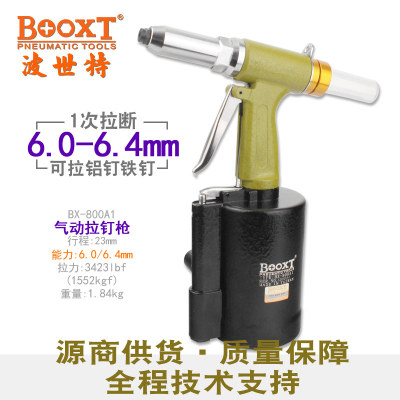

Item No. BX-800A1 Brand BOOXT Model BX-800A1
Maximum pull stud size 6.0-6.4 (mm) Self-contained gun head size 6.0 (mm) Pull force 3423 (kg)
Pull stud stroke 23 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)
Working pressure 0.65 (Mpa) Average air consumption 0.28m3/min Height 320 (mm)
Tool height 320 (mm) Total length 280 (mm) Applicable scope Applicable to riveting of automobile and motorcycle sheet metal and joining rivets for hardware products
Tool length 280mm Tool net weight 1.84 (kg) Is it a source of exclusive supply for cross-border export?
