Imported No Order No. BX-800EX Customized processing No

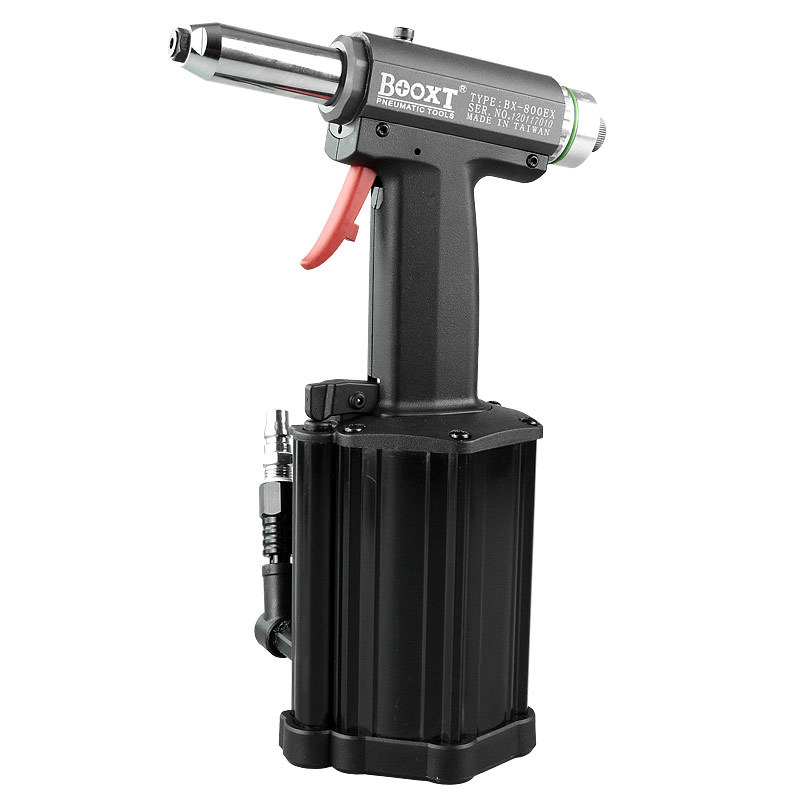

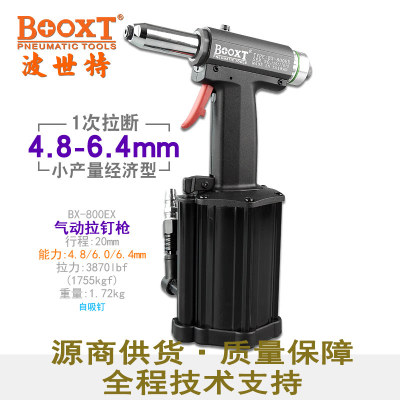

Item No. BX-800EX Brand BOOXT Model BX-800EX

Place of Origin China The largest stud size 6.4 (mm) The size of the gun head is 23 (mm)

Pull force 1755 (kg) Stroke of pull stud 20 (mm) Air inlet size 1/4 (inch)

Suggested inner diameter of trachea 8 (mm) Working pressure 0.65 (Mpa) Average air consumption 0.28m3/min

Height 320 (mm) Tool height 320 (mm) Total length 195 (mm)

Scope of application National standard 4.0/4.8/6.0/6.4 blind rivets of various materials. Tool net weight 1.72 (kg) Whether it is a source of special supply for cross-border export No
