Imported No Order No. BX-800 Customized processing No

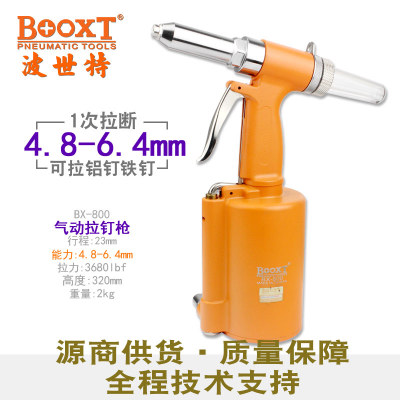

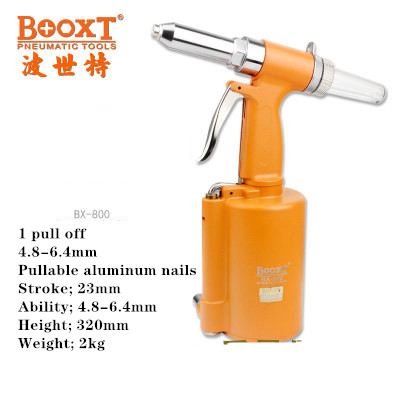

Item No. BX-800 Brand BOOXT Model BX-800

Maximum pull stud size 6.0, 6.4 (mm) Self-contained gun head size 6.4 (mm) Pull force 3423 (kg)

Pull stud stroke 23 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.28m3/min Height 320 (mm)

Tool height 320 (mm) Total length 280 (mm) Applicable scope Suitable for common blind rivet riveting operations

Tool length 280mm Tool net weight 1.84 (kg) Is it a source of exclusive supply for cross-border export?
