Imported No Order No. BX-820CX Customized processing No

Item No. BX-820CX Brand BOOXT Model BX-820CX

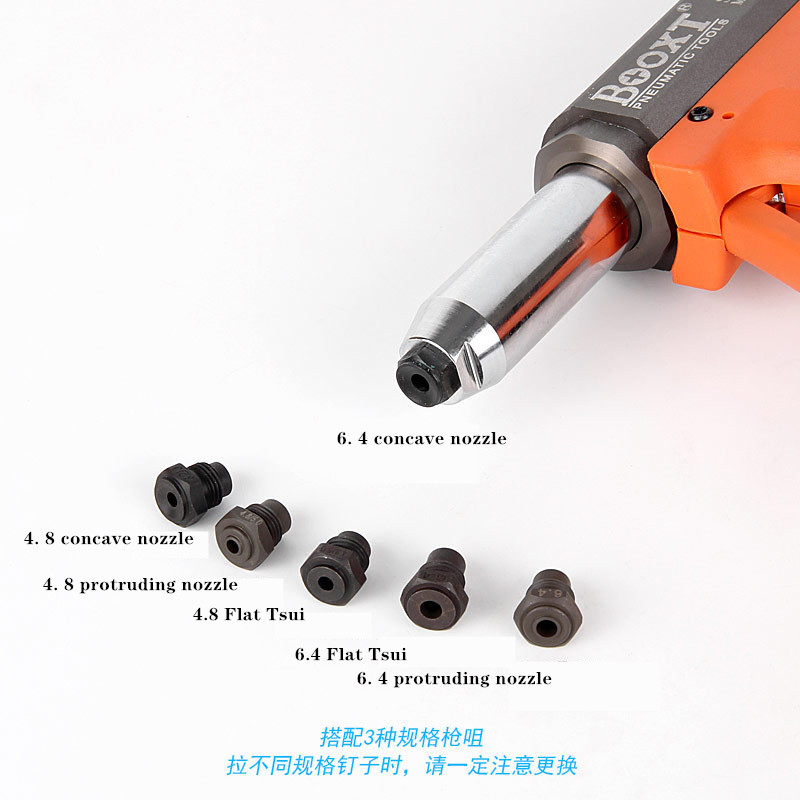

Maximum pull stud size 6.4 (mm) Self-contained gun head size 4.8/6.0/6.4 (mm) Pull force 2030 (kg)

Pull stud stroke 26 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.28m3/min Height 320 (mm)

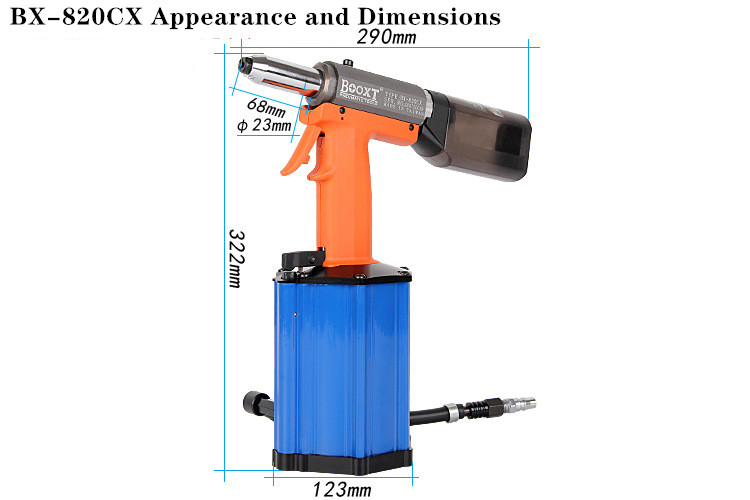

Tool height 320 (mm) Total length 280 (mm) Applicable scope Brushed rivets and ordinary blind rivets of all materials

Tool length 280mm Tool net weight 2.0 (kg) Is it a source of exclusive supply for cross-border export?
