Imported No Order No. BX-820G Customized processing No

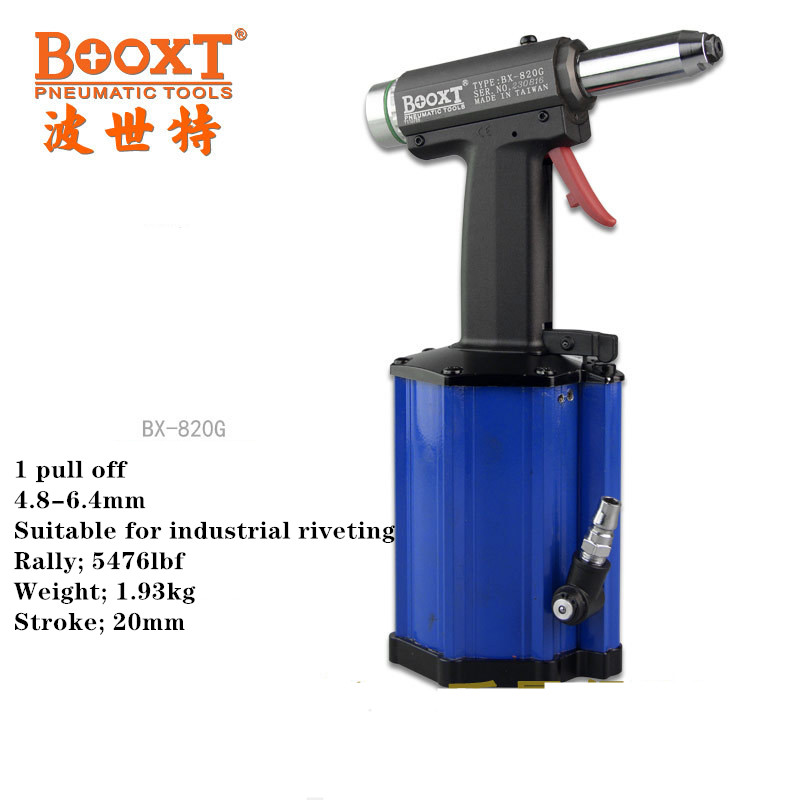

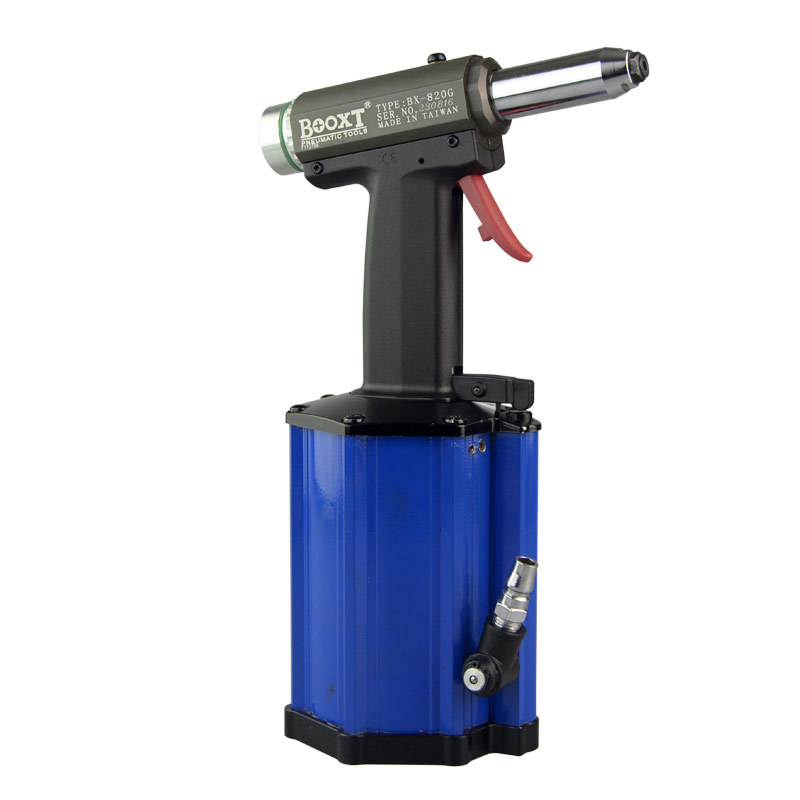

Item No. BX-820G Brand BOOXT Model BX-820G

Maximum pull stud size 6.4 (mm) Self-contained gun head size 4.8/6.0/6.4 (mm) Pull force 2484 (kg)

Pull stud stroke 20 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.28m3/min Height 320 (mm)

Tool height 320 (mm) Total length 280 (mm) Applicable scope Hippocampus rivet or other common blind rivet fastening operations

Tool length 280mm Tool net weight 1.93 (kg) Whether it is a source of exclusive supply for cross-border export No
