Imported No Order No. LG-801 Customized processing No

Item No. LG-801 Brand BOOXT Model LG-801

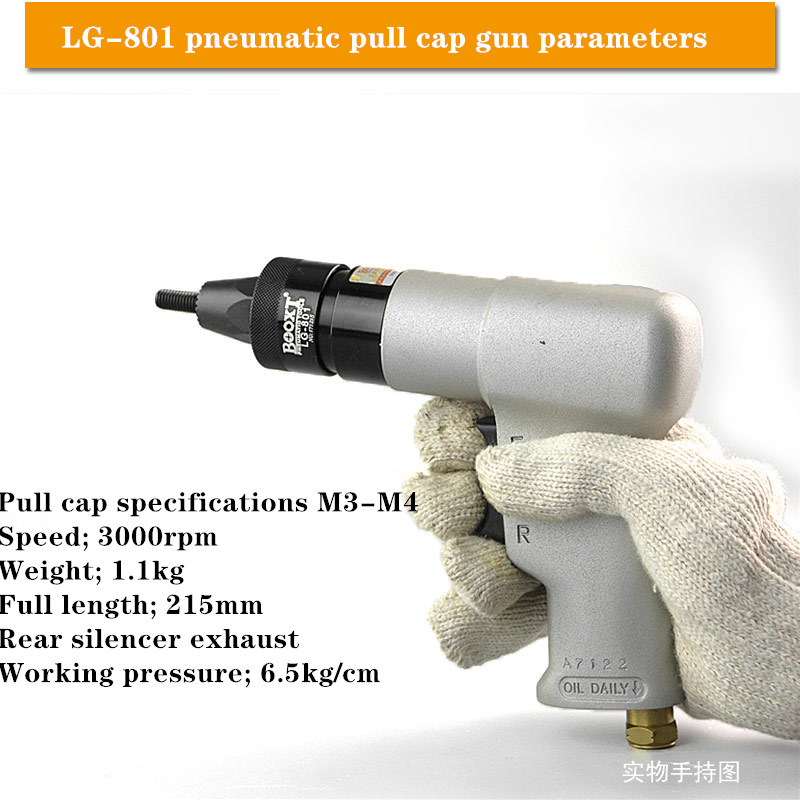

Maximum pull stud size M3-M4 (mm) Self-contained gun head size M3-M4 (mm) Tension 660 (kg)

Pull stud stroke 5 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.55m3/min Height 170 (mm)

Tool height 170 (mm) Total length 215 (mm) Applicable scope Suitable for industrial riveting operations such as metal products, plastic products, and wood products

Tool length 215mm Tool net weight 1.1 (kg) Is it a source of exclusive supply for cross-border export
