Imported No Order No. LG-805 Customized processing No

Item No. LG-805 Brand BOOXT Model LG-805

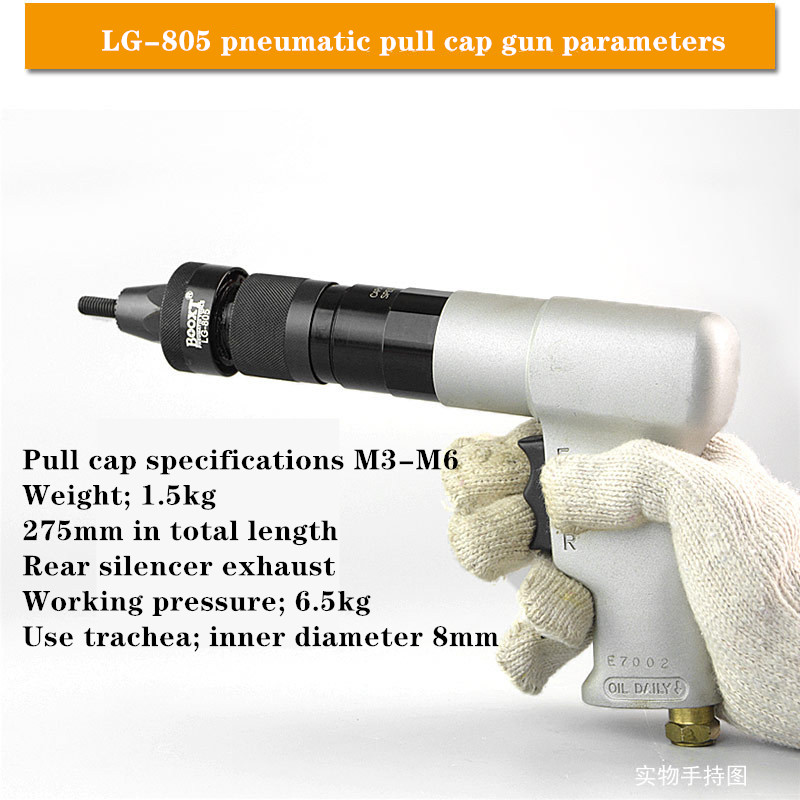

Maximum pull stud size M3-M6 (mm) Self-contained gun head size M3-M6 (mm) Pull force 1500 (kg)

Pull stud stroke 5 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.55m3/min Height 170 (mm)

Tool height 170 (mm) Total length 275 (mm) Applicable scope Industrial riveting operations such as metal products, plastic products, and wood products

Tool length 275mm Tool net weight 1.5 (kg) Is it a source of exclusive supply for cross-border export
