Imported or not No Order number LG-807 Customized processing No

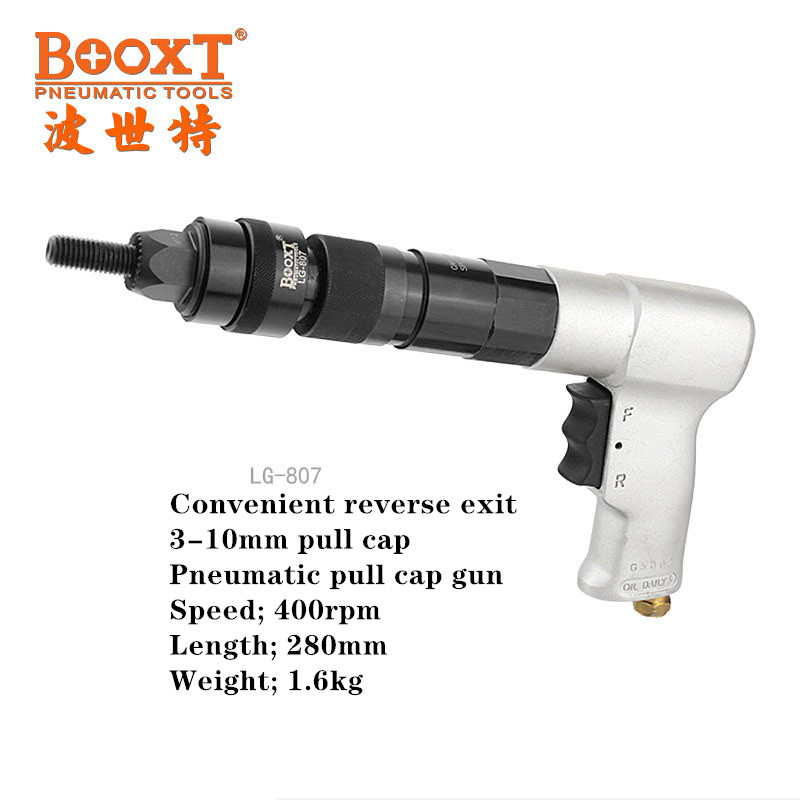

Item No. LG-807 Brand BOOXT Model LG-807

Maximum pull stud size M3-M10 (mm) Self-contained gun head size M3-M10 (mm) Pull force 1900 (kg)

Pull stud stroke 5 (mm) Air inlet size 1/4 (inch) Recommended inner diameter of trachea 8 (mm)

Working pressure 0.65 (Mpa) Average air consumption 0.55m3/min Height 180 (mm)

Tool height 180 (mm) Total length 280 (mm) Applicable scope Suitable for industrial riveting operations such as metal products, plastic products, and wood products

Tool length 280mm Tool net weight 1.6 (kg) Is it a source of exclusive supply for cross-border export
