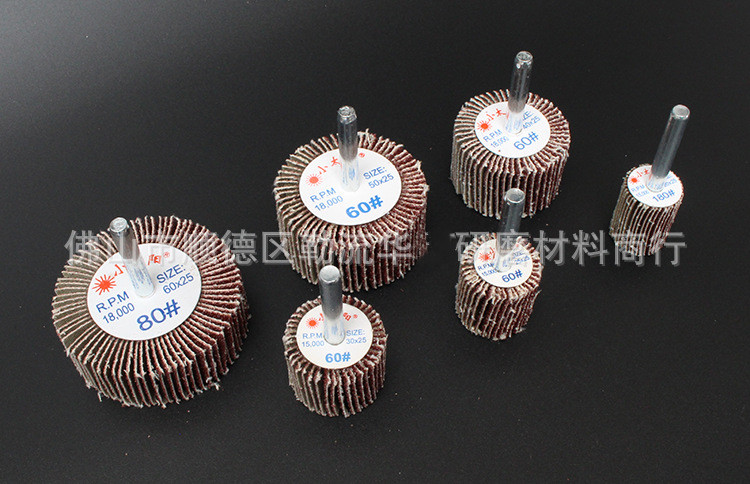

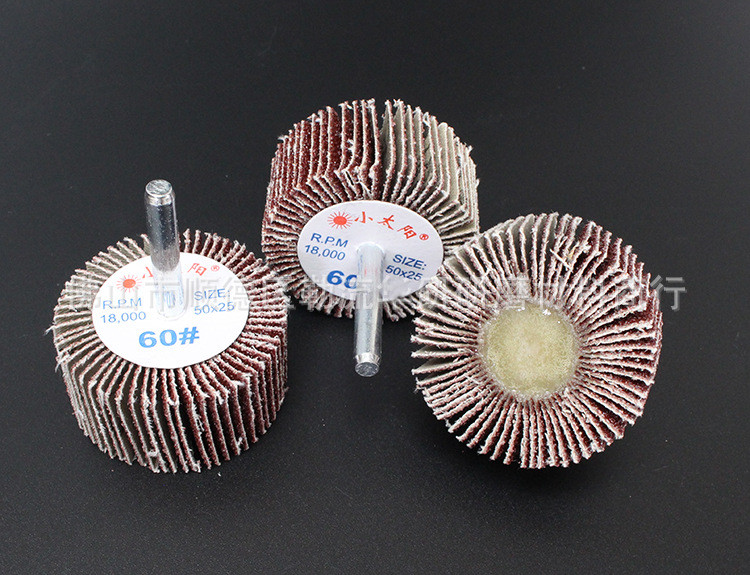

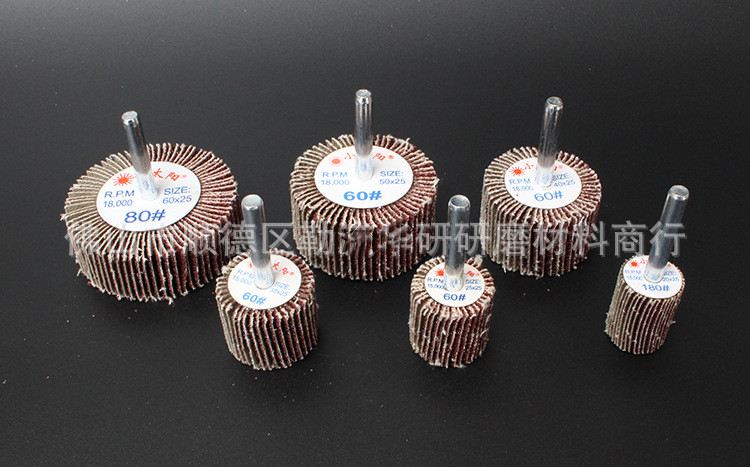

Product Name: Little Sun with Handle Page Wheel

Shaft type page wheel is also called page wheel grinding head, English name is FLAP WHEELS. This product is a connection block made of adhesive; the shaft and emery cloth used to connect power tools are radially glued to the connection block around the center point. A shaft-type page wheel is formed on the peripheral wall. The utility model is characterized in that the bottom of the emery cloth is also glued with a shaft sleeve with an inner cavity, the outer wall of the sleeve head is poured with adhesive to be embedded in the connecting block, and the inner cavity has a transmission shaft extending in and has an inner screw.

1. Supporting tools:

Straight angle grinder, portable electric drill, pneumatic tools, electric drill, pneumatic drill, bench drill, assembly line operation

2. Product features:

Sharp grinding, strong grinding force, strong durability, long life, high tensile strength of the cloth, good effect, and high production efficiency.

3. Product details:

Abrasive: brown corundum

Substrate: cloth

Adhesive: all resin

Specification: 20*25 25*25 30*25 30*35 40*25 50*25 60*25 80*25

Thickness: 25mm

Inner diameter: 6mm

Grain size: 60# 80# 100# 120# 180# 240# 320# 400#

4. Scope of application:

It is applied to the polishing and finishing of various complex shapes and deep holes of metal and non-metal, especially suitable for the grinding and polishing of concave and convex surfaces and sides.
