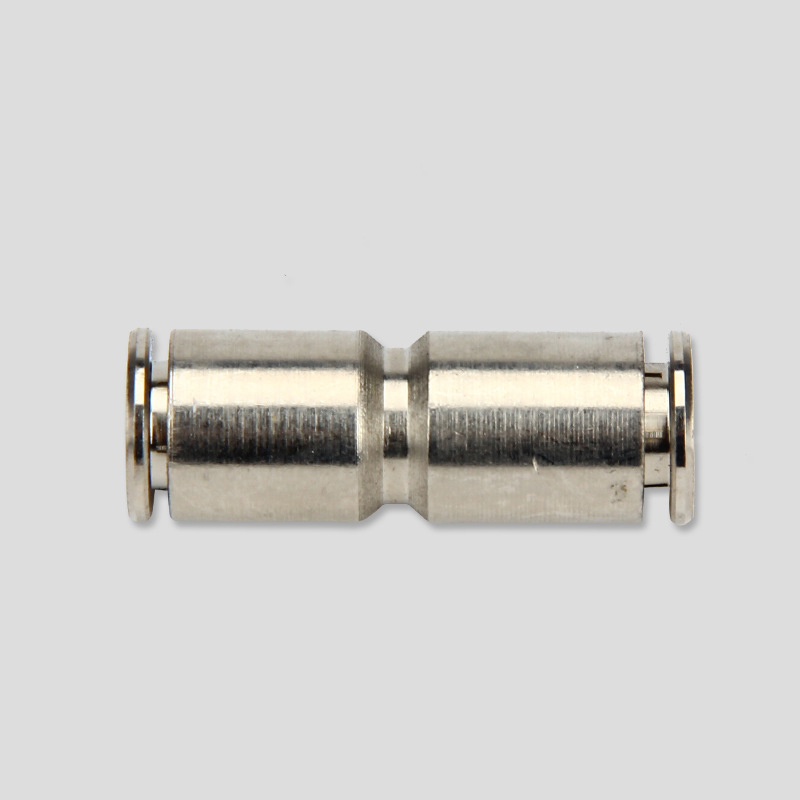

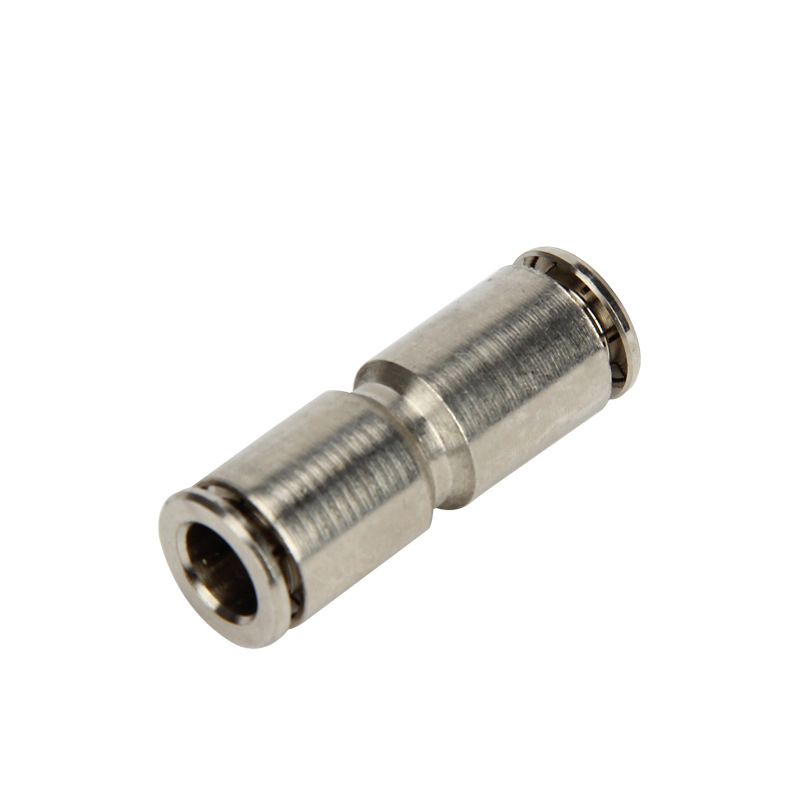

Stainless steel copper-plated joint PU straight through all metal straight joint PU plug-in quick joint

Order number 05464 Item No. 05464

Model PU Type Metal Connector

Material Copper nickel plating Scope Aerodynamics Temperature resistance 80 (°C)

Withstand voltage 1 (MPa) Mounting form PU4 (outer diameter 4 mm), PU6 (outer tube outer diameter 6 mm), PU8 (outlet outer diameter 8 mm), PU10 (outlet outer diameter 10 mm), PU12 (outlet outer diameter 12) Mm), PU14 (outer diameter 14 mm), PU16 (outer diameter 16 mm) Connector diameter Full copper nickel plating, 304 stainless steel, 316 stainless steel (mm)

1. Strict size control, small airflow resistance, low pressure loss and large flow.

2. The whole process is treated by special quenching and tempering, which has good wear resistance and long service life, and is not less than 10,000 times.

3. Simple operation, small connection force and easy to use.

4. Standard material: copper

This connector can be directly interchanged or replaced, suitable for PU type (polyurethane straight tube) hose

[Features]

1. Quick installation, simple and smart, save space.

2. Various types to meet the needs of any pneumatic pipe.

3. Even after installation, the plastic pipe body can be arbitrarily turned.

4. The release ring adopts an elliptical design, which makes the disassembly more labor-saving and convenient.

5. All taper pipe threads are pre-coated with PTFE leak-proof glue, and the sealing performance is good.

[Precautions]

1. Make sure that the cut surface of the pipe is vertical, there are no scratches around the outside of the pipe, and the pipe is not oval.

2. When inserting the pipe, it must be inserted into the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is installed, pull the pipe to confirm that the pipe cannot be pulled out. Please pay attention to the safety when removing the joint.

4. Using a suitable tool, use the outer hexagon of the fitting to remove the fitting.

5. Remove the sealing material opposite to the fitting of the pipe joint, otherwise the adhered sealing material may enter the peripheral components, causing malfunction.
