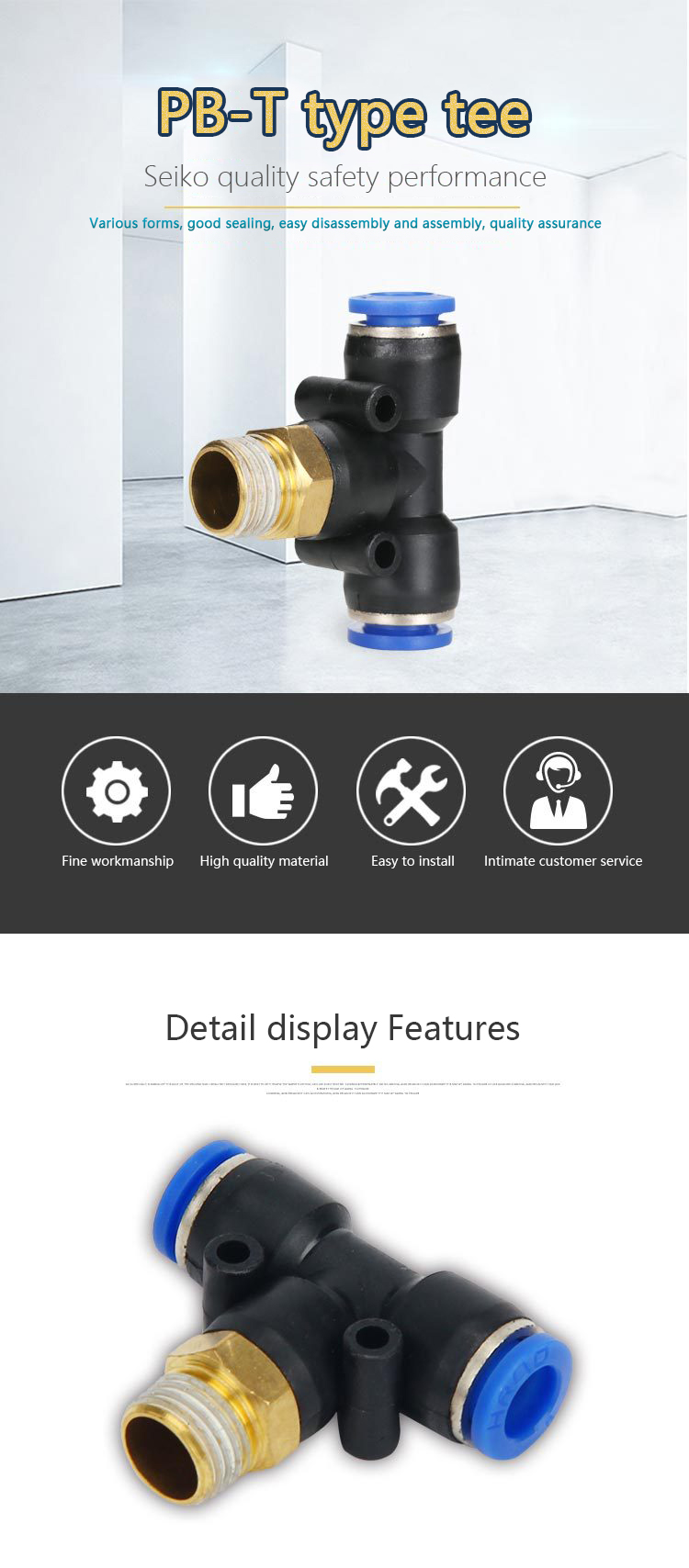

Product Features:

1. Simple and smart, diverse in form, to meet any need.

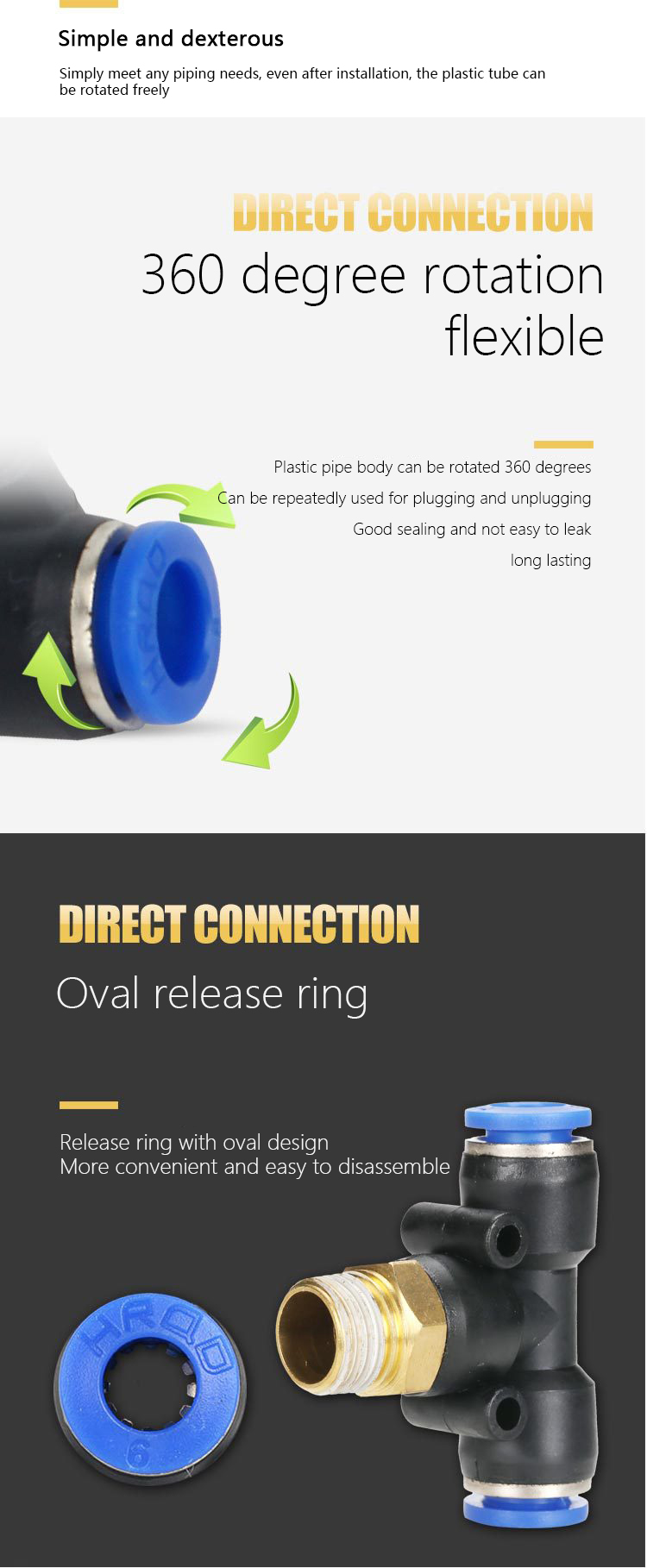

2. Even after installation, the plastic pipe body can be turned arbitrarily.

3. The release ring adopts an oval design, which is more labor-saving and convenient to disassemble.

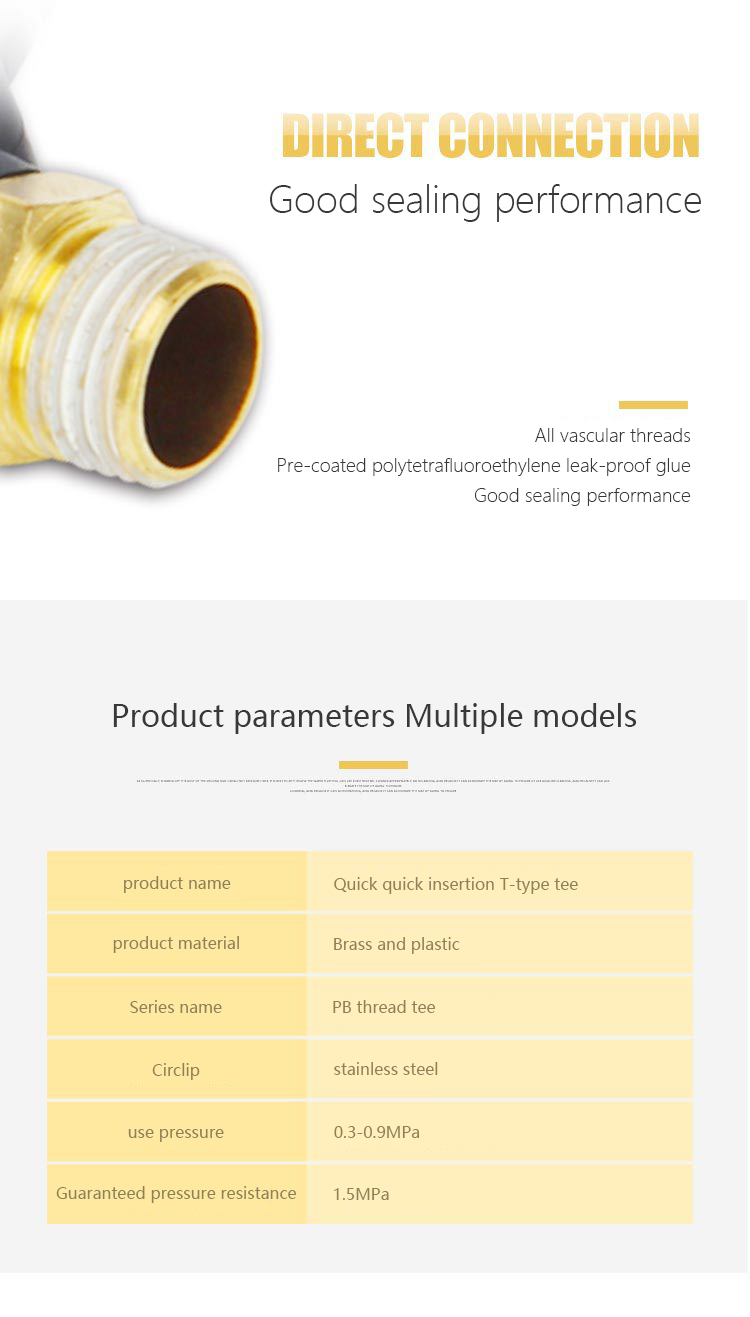

4. All pipe threads are pre-coated with Teflon leak-proof adhesive for good sealing performance.

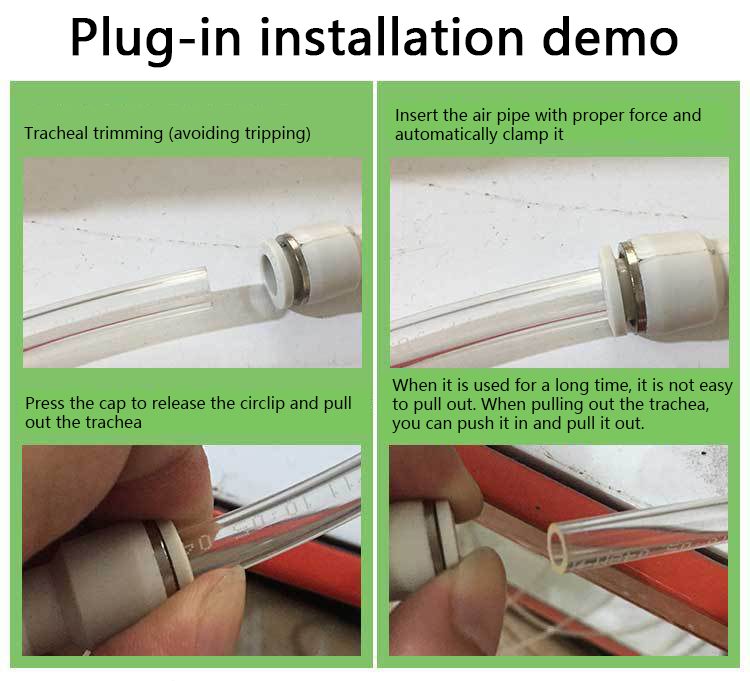

Takeover considerations

a. Make sure that the cross section of the trachea is vertical and there are no scars on the periphery of the trachea.

b. Make sure to insert the trachea at the bottom of the connector. If it is not inserted at the bottom, it may cause air leakage.

c. After the trachea is inserted, pull it down to make sure that the trachea cannot be pulled out before use.

Precautions when installing the connector body:

a. Use a suitable tool to use the outer hexagon of the pipe joint to install and fix the joint body

b. When tightening the joint thread, pay attention to the installation force should not be too large or too small. Too large may cause the thread portion to break and seal deformation to cause leakage, and too small may cause the thread portion to loosen and leak.

C. After the joint is connected, the product with the same direction of takeover can be adjusted within its tightening range.

Precautions for using the connector:

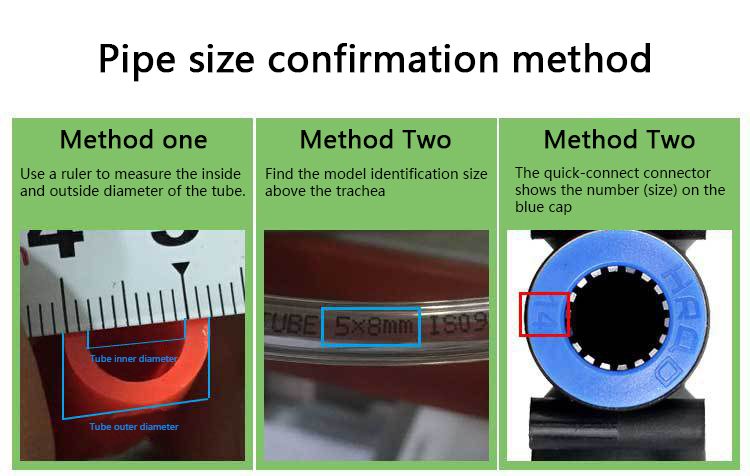

1. Make sure that the cut surface of the pipe is vertical, there are no scars on the periphery of the pipe, and the pipe is not oval.

2. When inserting the pipe, be sure to insert it at the bottom of the joint. If the pipe is not inserted, it may cause air leakage.

3. After the pipe is assembled, pull the pipe to make sure that the pipe cannot pull out the joint.

4. Please do not use for other than fluid.

5. Do not exceed the maximum operating pressure during use.

6. Do not use it outside the operating temperature range to prevent deformation of the sealing material and easily cause leakage.

7. Don't hit, bend, stretch and prevent damage.

8. Do not use in places where metal powder or sand dust is mixed in. Adhesives will cause poor work or leak.

Precautions during disassembly: Use a suitable tool to remove the pipe joint using the outer hexagonal part of the pipe joint. To remove the sealing material adhered to the opposite side of the fitting. Otherwise, the adhered sealing material may enter the peripheral components and cause failure.
